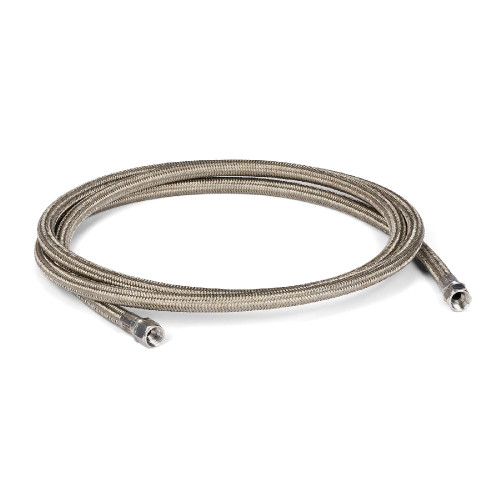

GRACO 17K279 - (4.6 M) Stainless Steel Braided PTFE Ambient Hose, 867" x 15 ft, No. 16 (0./ 22.0 mm ID), 4000 PSI
15 ft. (4.6 M) ambient temperature hose with No. 16 connection, designed for fluid transfer applications requiring flexibility and durability in standard temperature environments
Graco ambient temperature hoses bring reliable performance to Sealant and Adhesive dispensing installations. Whether your material is moisture sensitive, corrosive, or inert, Graco hoses have the materials of construction and build-quality to hold up to all your application’s needs.
Additional Specifications
Specifications
| Hose Diameter (in) | 0.867 |
| Hose Diameter (mm) | 22.0 |
| Hose Heating Type | Ambient |
| Hose Length (ft) | 15 |
| Inside Diameter (in) | 0.867 |
| JIC Size | JIC 16 |
| Material | PTFE Lined Stainless Steel Braid |
| Maximum Temperature (°F) | 212 |
| Maximum Working Pressure (MPa) | 27.6 |
| Maximum Working Pressure (psi) | 4000 |
| Thread Gender | Female |
| Thread Size | 1 5/16-12 |
| Thread Type | 37 degree JIC Swivel |
| Type | Hose |
| Voltage (V) | N/A |
Features
Applications
Related Parts
Part of the 17K series hose family with various lengths and connection sizes available for different application requirements This is part of a hose family with JIC Dash Size -16 and various lengths (6 ft, 10 ft, 15 ft, 20 ft, 25 ft). All have the same ID of 0.867 in. and ambient heat rating. Part of hose options family with JIC Dash Size -16 (1 in, 25.4 mm) and ambient temperature rating
Reference Manuals
GRACO 17K279 - (4.6 M) Stainless Steel Braided PTFE Ambient Hose, 867" x 15 ft, No. 16 (0./ 22.0 mm ID), 4000 PSI
15 ft. (4.6 M) ambient temperature hose with No. 16 connection, designed for fluid transfer applications requiring flexibility and durability in standard temperature environments
Graco ambient temperature hoses bring reliable performance to Sealant and Adhesive dispensing installations. Whether your material is moisture sensitive, corrosive, or inert, Graco hoses have the materials of construction and build-quality to hold up to all your application’s needs.
Additional Specifications
Specifications
| Hose Diameter (in) | 0.867 |
| Hose Diameter (mm) | 22.0 |
| Hose Heating Type | Ambient |
| Hose Length (ft) | 15 |
| Inside Diameter (in) | 0.867 |
| JIC Size | JIC 16 |
| Material | PTFE Lined Stainless Steel Braid |
| Maximum Temperature (°F) | 212 |
| Maximum Working Pressure (MPa) | 27.6 |
| Maximum Working Pressure (psi) | 4000 |
| Thread Gender | Female |
| Thread Size | 1 5/16-12 |
| Thread Type | 37 degree JIC Swivel |
| Type | Hose |
| Voltage (V) | N/A |
Features
Applications
Related Parts
Part of the 17K series hose family with various lengths and connection sizes available for different application requirements This is part of a hose family with JIC Dash Size -16 and various lengths (6 ft, 10 ft, 15 ft, 20 ft, 25 ft). All have the same ID of 0.867 in. and ambient heat rating. Part of hose options family with JIC Dash Size -16 (1 in, 25.4 mm) and ambient temperature rating
Reference Manuals
