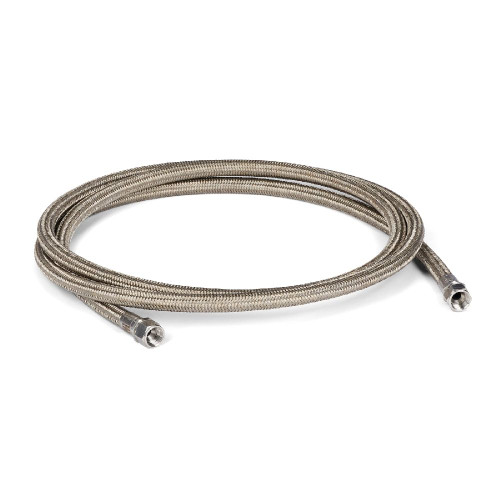

GRACO 17K281 - (7.6 M) Stainless Steel Braided PTFE Ambient Hose, 867" x 25 ft, No. 16 (0./ 22.0 mm ID), 4000 PSI
Professional-grade ambient temperature hose designed for reliable fluid transfer in industrial applications, featuring durable construction for consistent performance
Graco ambient temperature hoses bring reliable performance to Sealant and Adhesive dispensing installations. Whether your material is moisture sensitive, corrosive, or inert, Graco hoses have the materials of construction and build-quality to hold up to all your application’s needs.
Additional Specifications
- Length: 762 cm
- Max Working Pressure: 4000 PSI (28 MPa, 276 bar) at -65° F - 400° F (101° C - 204° C)
- Material: Heated construction
- Jic Dash Size: -16 (1 in, 25.4 mm)
Specifications
| Hose Diameter (in) | 0.867 |
| Hose Diameter (mm) | 22.0 |
| Hose Heating Type | Ambient |
| Hose Length (ft) | 25 |
| Inside Diameter (in) | 0.867 |
| JIC Size | JIC 16 |
| Material | PTFE Lined Stainless Steel Braid |
| Maximum Temperature (°F) | 212 |
| Maximum Working Pressure (MPa) | 27.6 |
| Maximum Working Pressure (psi) | 4000 |
| Thread Gender | Female |
| Thread Size | 1 5/16-12 |
| Thread Type | 37 degree JIC Swivel |
| Type | Hose |
| Voltage (V) | N/A |
Features
- Heated construction for consistent performance
- 762 cm working length
- Size 16 connection
- Ambient temperature rated
Applications
- Industrial fluid transfer
- Professional spray applications
- Equipment requiring heated hose solutions
Compatible Equipment
Related Parts
- 17K265
- 17K266
- 17K267
- 17K268
- 17K269
- 17K272
- 17K273
- 17K274
- 17K275
- 17K276
Part of GRACO's hose family with various lengths and connection sizes available. Heated construction indicates this hose is designed for applications requiring temperature control. Working pressure temperature rating applies to ambient heat applications. Max dynamic (run) pressure is 3,905 PSI (269 bar, 26.9 MPa). Part of the hose options family with JIC dash size -16 and ambient temperature rating
