GRACO 17L440 - CSP Outlet Fitting - Nylon Tube Push-To-Connect Stud - 1/4" OD Tube x M10 w/ Check Valve, 625 PSI

FITTING, push to connect, 1/4 in. OD tube x M10 with check valve, 625 PSI (4.31 MPa, 43.1 bar)

Specifications

• Outside Diameter: 1/4 in.
• Thread: M10
• Max Working Pressure: 625 PSI (4.31 MPa, 43.1 bar)
• Fitting Type: PTC (Push To Connect)
• Feature: with check valve
• Application: outlet of CSP
• Configuration: Straight

Compatible Equipment

• CSP Divider Block
• ProMix PD TSL Auto Lube System 25U418 (2 pumps, 4 points)
• CSP systems

Related Parts

• 17Y692

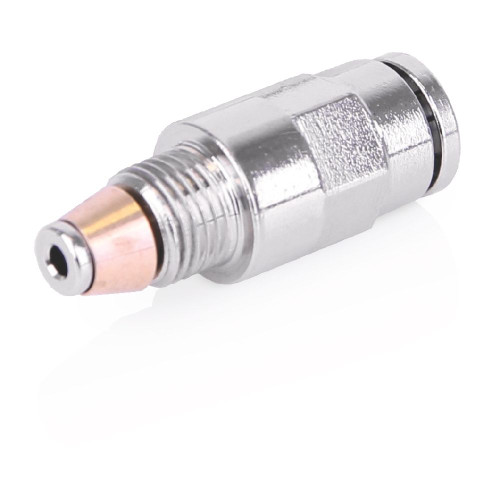

• 17L441 - CSP Outlet Fitting - G-Lock Push-To-Connect Stud - 1/4" Hose Stud x M10 w/ Check Valve, 2000 PSI
• 17L458 - 6mm M10 PTC Fitting
• 17L543 - 6mm PTC CSP Fitting, Nylon tube compatible, M10
• 17L550 - Fitting 6 mm tube x m10 male
• 17Y693 - Fitting M10x1/8NPT, 5076 PSI
• 17Y689 - Fitting Swivel 1/8 NPT x 6mm, 2000 PSI
• 20A080

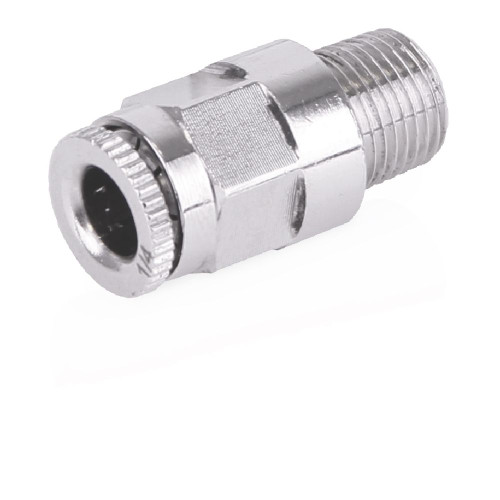

• 17L653 - FITTING, ptc, 1/4 in. Tube x 1/8 NPT
• 18D411 - Tubing, Nylon, 1/4 in. OD, 625 PSI

Always connect fittings to GRACO designed stud to ensure connections. Always use GRACO outlet fittings for your applications. Always use GRACO CSP valve outlet fittings with clamping ring. Any fittings without a clamping ring will cause the lubrication system to improperly proportion output flow and will fail. Included in Kit 25U421, see Expansion Kit Offerings, page 18. This part is included as quantity 2 in the 25U421 expansion kit for PD CSP Fluid Connect systems. It serves as a straight push-to-connect fitting for 1/4 inch tube at the CSP outlet.

Reference Manuals

• 352633 (Page 2) Graco Compact Series Progressive Valve Brochure
• 3A3995 (Page 15) CSP Valve
• 3A8597 (Page 17) ProMix PD Proportioner Platform TSL Auto Lube System, Instuctions-Parts
