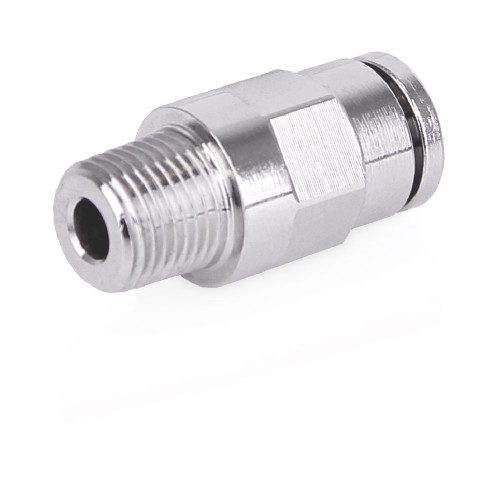

GRACO 17L649 - STUD, Straight

GRACO 17L649 is a straight hose stud fitting designed for high-pressure fluid handling systems, specifically engineered for use in GRACO's CSP (Central Supply Point) lubrication systems with G-Lock Push-To-Connect technology for reliable, leak-free connections.

Specifications

• Outside Diameter: 6 mm
• Thread: G-Lock Push-To-Connect
• Max Working Pressure: High pressure rated
• Connection Type: G-Lock Push-To-Connect
• Configuration: Straight
• Size: 6mm

Features

• Push-to-connect design for easy installation
• Straight configuration for direct connections
• 6mm diameter for standard tubing
• Industrial-grade construction for reliability
• G-Lock Push-To-Connect technology for quick installation
• High pressure rating for demanding applications

Applications

• High-pressure hose connections
• Nylon tube mounting systems
• Industrial lubrication equipment
• Fluid transfer systems
• CSP (Central Supply Point) lubrication systems
• Main line connections from pump to divider valve

Compatible Equipment

• G-series pumps
• Industrial lubrication equipment
• 6mm nylon tubing systems
• GRACO CSP Divider Valves
• GRACO lubrication pumps
• G-Lock Push-To-Connect fittings

Related Parts

• 17L648
• 17L650
• 17S665
• 17S666
• 17L650 - 6mm Elbow G-Lock Push-To-Connect
• 17L648 - Hose Sleeve
• 17L565 - 6mm Straight Compression
• 17L566 - 6mm Elbow Compression
• 17R565
• 17R566

Part of HP hose, nylon tube & mounting accessories family for industrial lubrication systems This part appears in both main line and secondary line selection tables, indicating its versatility for various connection points in CSP lubrication systems. Part of GRACO's comprehensive metric fitting system. Listed under HP Hose & Nylon Tube Mounting Accessories section

Reference Manuals

• 300765 (Page 7)
• 352633 (Page 5)
• 3A3159 (Page 1)
• 3A3995 (Page 18)
