GRACO 19A107 - Diamond Blade for Concrete, Diamond

GRACO 19A107 Diamond Blade designed for concrete applications, providing effective shaving, grooving, and performing inlay work for traffic lanes and thermoplastic applications. Features diamond technology for superior cutting performance and durability.

Specifications

• Material: Diamond
• Application: Concrete
• Blade Type: Diamond Blade for concrete applications
• Cut Width: 0.25 in / 0.65 cm
• Quantity Per Set: 1

Features

• Diamond technology for superior cutting performance
• Self-sharpening capability
• Long service life
• Effective for concrete surface preparation
• Diamond construction for durability
• Individual cutter for precision work

Applications

• Concrete surface preparation
• Shaving concrete surfaces
• Grooving concrete
• Performing inlay work for traffic lanes
• Thermoplastic applications
• Performing inlay work for traffic tape

Compatible Equipment

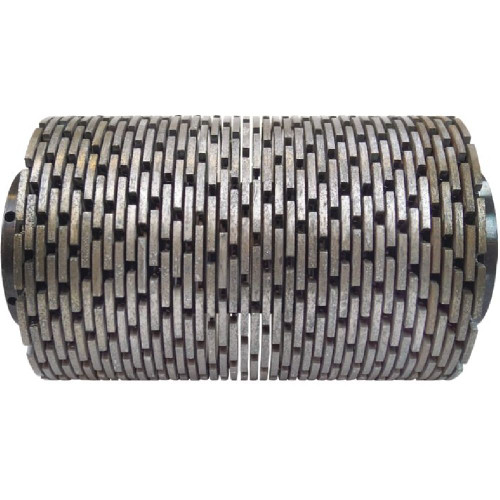

• 19A106 Diamond Drum system
• GrindLazer HP DC1520 E DCS (High Speed Version Only)
• GrindLazer HP DC1538 G DCS (High Speed Version Only)
• HP DC15 Series equipment

Related Parts

• 19A106
• 258382 - Grindlazer HP Dc15 Diamond Drum Assembly - Asphalt Blade, 15"
• 25B382
• 25B383
• 25B384
• 25B385
• 19B428

Part of GRACO's diamond drum system for concrete applications. Works with asphalt blade, concrete blade configurations for different groove patterns and surface preparation needs. This is an individual diamond cutter component, not a complete assembly. Only compatible with high-speed versions of the GrindLazer equipment. Part of the HP DC15 Series Diamond Blades product line for professional concrete cutting applications

Reference Manuals

• 290474 (Page 3)
• 341251 (Page 30)
• 344384 (Page 18)
• 3J0054EN (Page 3)
