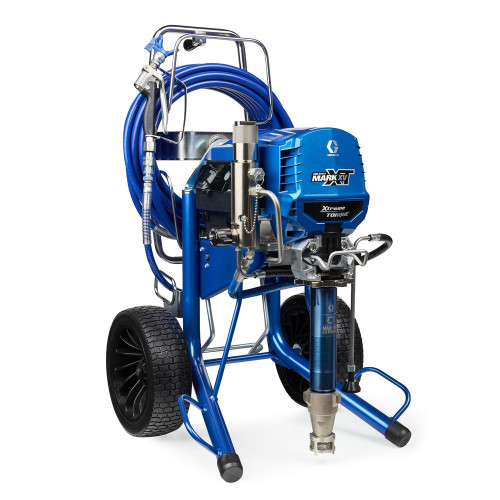

GRACO 19F551 - Mark IV XT HD 3-in-1 ProContractor Series Electric Airless Sprayer, Hi-Boy, 3300 PSI

The 19F551 Mark IV XT ProContractor is a professional-grade brushless electric airless sprayer featuring the new XT Motor with Reduced Drive Train technology. This hi-boy configuration unit delivers up to 10X quieter operation with rapid-response pressure control and selectable performance modes. Built with MaxLife Extreme construction for maximum durability and featuring Endurance Vortex pump technology for consistent performance.

Specifications

• Flow Rate: 1.2 GPM
• Max Working Pressure: 3,300 PSI
• Material: MaxLife Extreme
• Max Tip Size: .033"
• Pump Technology: Endurance Vortex MaxLife
• Maximum Tip Size: 0.031"
• Xtreme Torque Motor: 2.7 HP
• Weight: 101 lbs
• Gun Support: 2 guns
• Piston Pump Technology: Endurance Vortex MaxLife

Features

• Superior pump life with Endurance Vortex MaxLife and MaxLife Extreme Piston Pumps
• Innovative MaxLife Technology lasts 6x longer between repacks
• Easy hose management with QuikReel Hose Management System
• Deploy and rewind up to 300 feet of hose in seconds without twisting, kinking or coiling
• BlueLink jobsite management system to track job progress and locate sprayers
• Flat proof tires - puncture resistant design

Applications

• Professional contractor applications
• Heavy-duty commercial painting
• Residential painting projects
• Construction and building maintenance
• Heavy-duty commercial projects
• Multi-gun spray operations

Compatible Equipment

• RAC X 4x7 and 5x11 SwitchTip and Guard
• BlueMax II 3/8 x 50 ft (6.4mm x 15m) Airless Hose
• Heavy-Duty Blue Texture gun
• BlueMax X Airless Hose
• RAC X LTX 4CZ and SX1 tips
• PAZ 4,47 and 531 SwitchTip and Guard

Related Parts

• 19F552
• 208432 - Circulating Manifold
• 19F549
• 19F550

Part of the Mark XT ProContractor Series with enhanced features over standard series models. Includes all standard series features plus upgraded pump technology and management systems. Part of the 2024 Mark XT HD 3-in-1 lineup. Hi-Boy configuration for enhanced mobility. Features brushless motor technology for extended life and reduced maintenance. Part of the Mark XT ProContractor Series with all standard series features plus enhanced performance upgrades. Includes BlueLink technology for job site management and productivity tracking.

Reference Manuals

• 3J0626EN (Page 7)
• 3J0626EN-A (Page 7)
• 3B0070 (Page 5)
• X011699 (Page 5)
