Item #: 2000475
Price: $2,060.00
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

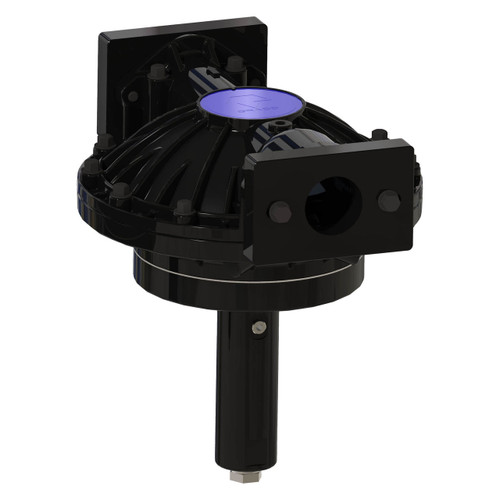

GRACO 2000475 - 2" i-Series Aluminum Pulsation Dampener w/ SS Seats & BN Diaphragm
Reducing pulsation and vibration in your system will reduce stress on downstream equipment and increase system efficiency. Pulsation dampeners can improve the performance and reliability of your fluid transfer process
Additional Specifications
Specifications
| Connection Type | BSPT |
| Diaphragm Material | Buna-N |
| Fluid Section Material | Aluminum |
| Hazardous Location Approval | ATEX |
| Inlet Size (in) | 2 |
| Maximum Flow Rate (GPM) | 150 |
| Maximum Fluid Operating Temperature (°C) | 82 |
| Maximum Fluid Operating Temperature (°F) | 180 |
| Maximum Fluid Pressure (MPa) | 0.83 |
| Maximum Fluid Pressure (psi) | 120 |
| Minimum Fluid Operating Temperature (°C) | -12 |
| Minimum Fluid Operating Temperature (°F) | 10 |
| Model | i-Series |
| Outlet Size (in) | 2 |
| Seat Material | 316 Stainless Steel |
| Series | 2" |
| Type | Pulsation Dampener |
| Wetted Material | Aluminum |
Compatible Equipment
Related Parts
Part of fluid section material AL (aluminum) for Model i200A with A2 connection type (2 in.-11.5 BSPT) Part 2000475 is grouped with 2000472 and corresponds to kit part number 2002771. This appears to be a component within a diaphragm repair kit rather than a standalone part.
Reference Manuals
GRACO 2000475 - 2" i-Series Aluminum Pulsation Dampener w/ SS Seats & BN Diaphragm
Reducing pulsation and vibration in your system will reduce stress on downstream equipment and increase system efficiency. Pulsation dampeners can improve the performance and reliability of your fluid transfer process
Additional Specifications
Specifications
| Connection Type | BSPT |
| Diaphragm Material | Buna-N |
| Fluid Section Material | Aluminum |
| Hazardous Location Approval | ATEX |
| Inlet Size (in) | 2 |
| Maximum Flow Rate (GPM) | 150 |
| Maximum Fluid Operating Temperature (°C) | 82 |
| Maximum Fluid Operating Temperature (°F) | 180 |
| Maximum Fluid Pressure (MPa) | 0.83 |
| Maximum Fluid Pressure (psi) | 120 |
| Minimum Fluid Operating Temperature (°C) | -12 |
| Minimum Fluid Operating Temperature (°F) | 10 |
| Model | i-Series |
| Outlet Size (in) | 2 |
| Seat Material | 316 Stainless Steel |
| Series | 2" |
| Type | Pulsation Dampener |
| Wetted Material | Aluminum |
Compatible Equipment
Related Parts
Part of fluid section material AL (aluminum) for Model i200A with A2 connection type (2 in.-11.5 BSPT) Part 2000475 is grouped with 2000472 and corresponds to kit part number 2002771. This appears to be a component within a diaphragm repair kit rather than a standalone part.
Reference Manuals
