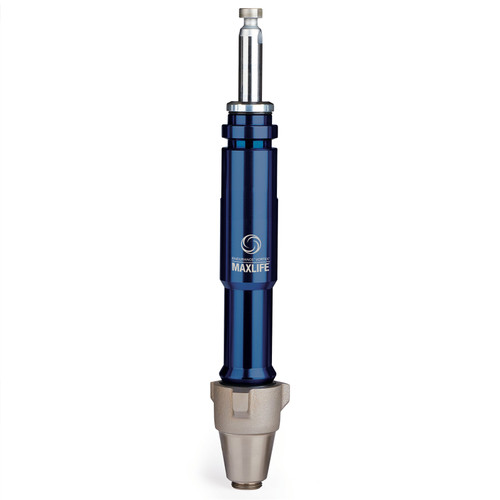

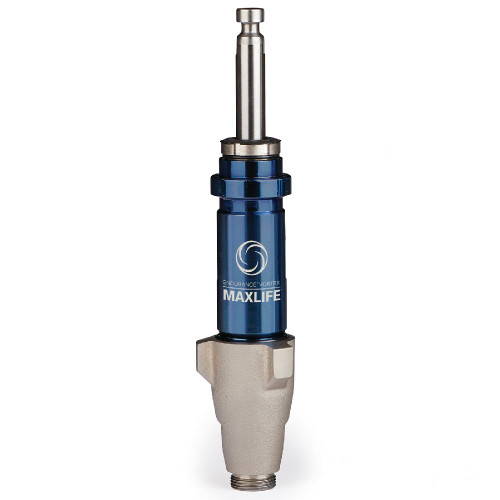

GRACO 2001549 - Endurance Vortex MaxLife Piston Pump, 3300 PSI

Model requiring 27 ± 3 ft-lb torque for piston valve to piston rod connection

Specifications

• Max Working Pressure: 3300 PSI (22.7 MPa, 227 bar) Maximum Working Pressure
• Pump Type: Displacement Pump
• Torque Spec: 27 ± 3 ft-lb (36.6 ± 4.1 N•m)

Compatible Equipment

• 695 XT
• 795 XT
• 1095 XT
• Mark IV XT
• Mark VII XT electric airless sprayers

Related Parts

• 2001548 - Endurance Vortex Piston Pump, 695 XT
• 2001573 - Endurance Vortex Piston Pump, 795 XT
• 2001574 - Endurance Vortex MaxLife Piston Pump, 795 XT
• 2001550 - Endurance Vortex Piston Pump, 1095 XT
• 2001551 - Endurance Vortex MaxLife Extreme Piston Pump, 1095 XT
• 2001552 - Endurance Vortex Piston Pump, Mark IV XT Standard
• 2001553 - Endurance Vortex MaxLife Piston Pump, Mark IV XT ProContractor
• 2001554 - Endurance Vortex Piston Pump, Mark V XT Standard
• 2001555 - Endurance Vortex Maxlife Extreme Piston Pump, Mark V XT ProContractor

Kit Contents

• 17H841 - QuikPak Cartridge Repair System

This is Model 2001549 for the 695 XT Pro sprayer. This manual is for repair of displacement pump components. For professional use only. This is a pump repair kit with repair kit number 17H841. Related to pump model 2001574 which shares the same repair kit. Part 2001549 is grouped with models 2001548, 2001573, 2001574, 2001552, 2001553 that all require the same torque specification of 27 ± 3 ft-lb. Also noted as 'Not used on' in the packing assembly diagram in step 5A.

Reference Manuals

• 344386 (Page 12) Airless Accessories Brochure
• 3J0617EN (Page 8)
• 3A9391 (Page 1) Displacement Pump, Repair, Manual 3A9391B
• 3B0070 (Page 53) Operation, Parts, 695XT, 795XT, 1095XT, Mark IV XT, Mark V XT, Mark VII XT, Electric Airless Sprayers
• X011699 (Page 74)
