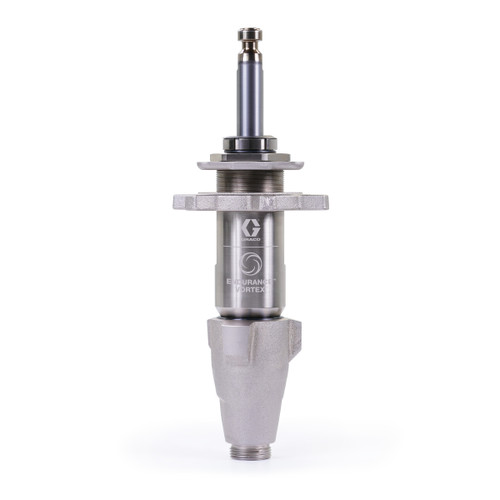

GRACO 2001551 - Endurance Vortex MaxLife Extreme Piston Pump, 1095 XT, 3300 PSI

Professional-grade replacement pump for the GRACO Ultimate 1095 XT airless paint sprayer, featuring the advanced Endurance Vortex MaxLife Extreme piston design for maximum durability and performance in demanding coating applications

Specifications

• Flow Rate: 1.30 GPM
• Max Working Pressure: 3,300 PSI maximum
• Material: Endurance Vortex MaxLife construction
• Maximum Tip Size: 0.037" Max Tip
• Weight: 112 lbs (Standard unit)
• Gun Support: 3 guns
• Motor: Xtreme Torque Motor (HP) - 2.0
• Model Number: 2001551
• Product Line: 1095 XT Pro
• Pump Type: Displacement Pump

Features

• Endurance Vortex MaxLife Extreme piston technology
• Compatible with Ultimate 1095 XT sprayer
• High pressure capability up to 3,300 PSI
• Designed for professional contractor use
• Advanced piston design for extended service life

Applications

• Professional painting applications
• High-volume coating projects
• Commercial and industrial painting
• Heavy-duty spray applications requiring up to 3 gun support

Compatible Equipment

• Ultimate 1095 XT
• 1095 XT electric airless sprayers

Related Parts

• 830300 (Hi-Boy configuration)
• 830301 (Hi-Boy ProContractor configuration)
• 2001548 - Endurance Vortex Piston Pump, 695 XT
• 2001549 - Endurance Vortex MaxLife Piston Pump
• 2001573 - Endurance Vortex Piston Pump, 795 XT
• 2001574 - Endurance Vortex MaxLife Piston Pump, 795 XT
• 2001550 - Endurance Vortex Piston Pump, 1095 XT
• 2001552 - Endurance Vortex Piston Pump, Mark IV XT Standard
• 2001553 - Endurance Vortex MaxLife Piston Pump, Mark IV XT ProContractor
• 2001554 - Endurance Vortex Piston Pump, Mark V XT Standard

Kit Contents

• 17H842 - QuikPak Cartridge Repair System

This is a replacement pump component for the Ultimate 1095 XT system, which is part of GRACO's Ultimate XT professional airless sprayer lineup featuring multiple advanced technologies including new ProConnect replacement system, rapid-response gun swivel, and QuikReel hose reel capabilities This is a displacement pump for repair of displacement pump in 695 XT, 795 XT, 1095 XT, Mark IV XT, Mark V XT, and Mark VII XT electric airless sprayers. For professional use only. This is a pump repair kit with repair kit number 17H842. Found in pump repair kits table alongside other similar pump models.

Reference Manuals

• 344386 (Page 12) Airless Accessories Brochure
• 3J0617EN (Page 8)
• 3A9391 (Page 1) Displacement Pump, Repair, Manual 3A9391B
• 3B0070 (Page 55) Operation, Parts, 695XT, 795XT, 1095XT, Mark IV XT, Mark V XT, Mark VII XT, Electric Airless Sprayers
• X011699 (Page 78)
