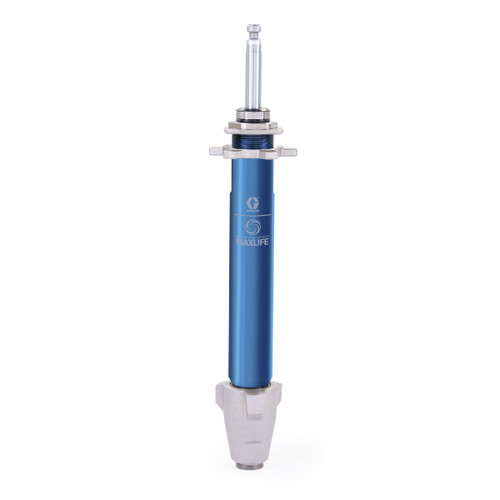

GRACO 2001553 - Endurance Vortex MaxLife Piston Pump, Mark IV XT ProContractor, Ceramic Balls, 3300 PSI

Specifications

• Max Working Pressure: 3300 PSI (22.7 MPa, 227 bar) Maximum Working Pressure
• Material: ceramic balls

Compatible Equipment

• Mark IV XT electric airless sprayers

Related Parts

• 2001548 - Endurance Vortex Piston Pump, 695 XT
• 2001549 - Endurance Vortex MaxLife Piston Pump
• 2001573 - Endurance Vortex Piston Pump, 795 XT
• 2001574 - Endurance Vortex MaxLife Piston Pump, 795 XT
• 2001550 - Endurance Vortex Piston Pump, 1095 XT
• 2001551 - Endurance Vortex MaxLife Extreme Piston Pump, 1095 XT
• 2001552 - Endurance Vortex Piston Pump, Mark IV XT Standard
• 2001554 - Endurance Vortex Piston Pump, Mark V XT Standard
• 2001555 - Endurance Vortex Maxlife Extreme Piston Pump, Mark V XT ProContractor

This is a displacement pump model for repair of displacement pump in Mark IV XT electric airless sprayers. For professional use only. Part 2001553 corresponds to repair kit 17H849 (ceramic balls). This is part of a family of pump repair kits for various pump models. UHMWPE packing (part 3) is not used on this model according to step 5A. This model is part of a series that includes 2001548, 2001549, 2001573, 2001574, 2001552, and 2001553 - all noted as not using UHMWPE packing in the repair procedure.

Reference Manuals

• 3A9391 (Page 1) Displacement Pump, Repair, Manual 3A9391B
• 3B0070 (Page 53) Operation, Parts, 695XT, 795XT, 1095XT, Mark IV XT, Mark V XT, Mark VII XT, Electric Airless Sprayers
• X011699 (Page 74)
