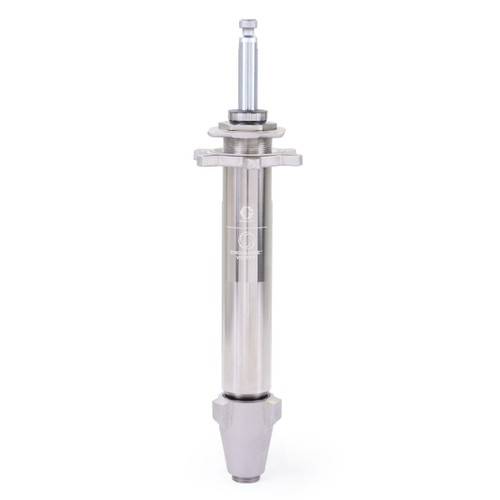

GRACO 2001554 - Endurance Vortex Piston Pump, Mark V XT Standard, 3300 PSI

Specifications

• Max Working Pressure: 3300 PSI (22.7 MPa, 227 bar) Maximum Working Pressure
• Application: displacement pump repair for electric airless sprayers
• Torque Specification: 55 ± 3 ft-lb (74.6 ± 4.1 N•m)

Compatible Equipment

• 695 XT
• 795 XT
• 1095 XT
• Mark IV XT
• Mark VII XT electric airless sprayers

Related Parts

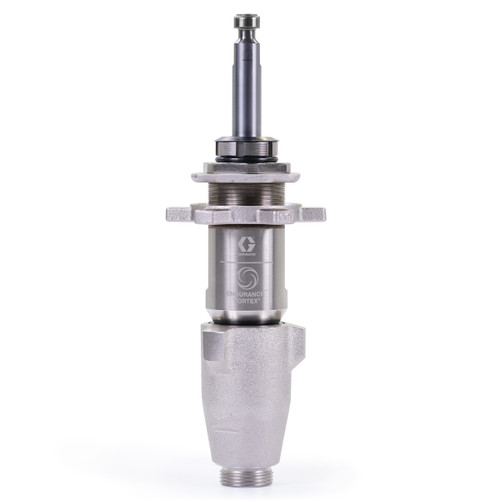

• 2001548 - Endurance Vortex Piston Pump, 695 XT
• 2001549 - Endurance Vortex MaxLife Piston Pump
• 2001573 - Endurance Vortex Piston Pump, 795 XT
• 2001574 - Endurance Vortex MaxLife Piston Pump, 795 XT
• 2001550 - Endurance Vortex Piston Pump, 1095 XT
• 2001551 - Endurance Vortex MaxLife Extreme Piston Pump, 1095 XT

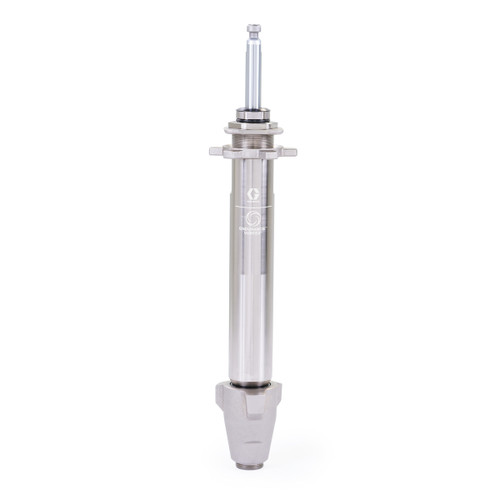

• 2001552 - Endurance Vortex Piston Pump, Mark IV XT Standard
• 2001553 - Endurance Vortex MaxLife Piston Pump, Mark IV XT ProContractor

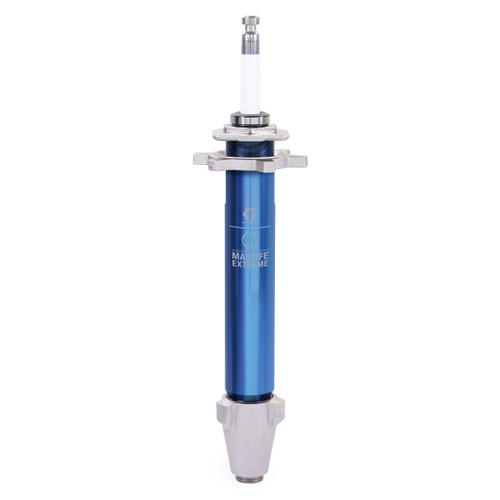

• 2001555 - Endurance Vortex Maxlife Extreme Piston Pump, Mark V XT ProContractor

Kit Contents

• 17H846 - ceramic balls

This is a displacement pump model for repair of electric airless sprayers. For professional use only. This is a repair kit for pump model 2001554, containing ceramic balls (part 17H846). Other pumps in the same series use different repair kits, with some also containing ceramic balls. This part is grouped with other models (2001550, 2001551, 2001554, 2001555, 2001556, 2001557) that all require the same torque specification of 55 ± 3 ft-lb for tightening the piston valve to piston rod, as opposed to other models that require 27 ± 3 ft-lb

Reference Manuals

• 3A9391 (Page 1) Displacement Pump, Repair, Manual 3A9391B
• 3B0070 (Page 51) Operation, Parts, 695XT, 795XT, 1095XT, Mark IV XT, Mark V XT, Mark VII XT, Electric Airless Sprayers
• X011699 (Page 70)
