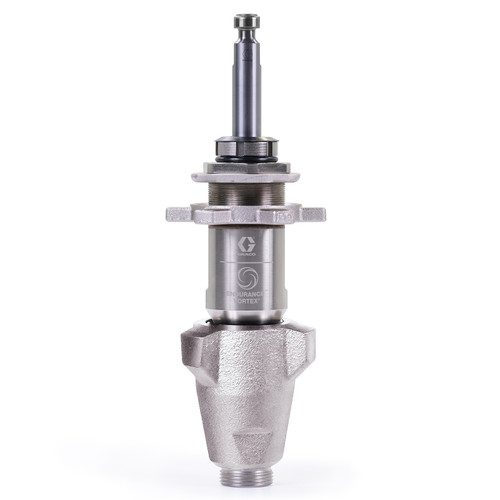

GRACO 2001574 - Endurance Vortex MaxLife Piston Pump, 795 XT, 3300 PSI

Specifications

• Max Working Pressure: 3300 PSI (22.7 MPa, 227 bar) Maximum Working Pressure
• Equipment Type: electric airless sprayer
• Repair Kit Number: 17H841
• Torque Spec: 27 ± 3 ft-lb. (36.6 ± 4.1 N•m)

Compatible Equipment

• 795 XT, 1095 XT, Mark IV XT, Mark V XT, and Mark VII XT electric airless sprayers
• 2001574 - Endurance Vortex MaxLife Piston Pump, 795 XT pump, 795 XT pump model

Related Parts

• 2001548 - Endurance Vortex Piston Pump, 695 XT
• 2001549 - Endurance Vortex MaxLife Piston Pump
• 2001573 - Endurance Vortex Piston Pump, 795 XT
• 2001550 - Endurance Vortex Piston Pump, 1095 XT
• 2001551 - Endurance Vortex MaxLife Extreme Piston Pump, 1095 XT
• 2001552 - Endurance Vortex Piston Pump, Mark IV XT Standard
• 2001553 - Endurance Vortex MaxLife Piston Pump, Mark IV XT ProContractor
• 2001554 - Endurance Vortex Piston Pump, Mark V XT Standard
• 2001555 - Endurance Vortex Maxlife Extreme Piston Pump, Mark V XT ProContractor

This is Model 2001574 for the 795 XT Pro displacement pump repair. For professional use only. Part 2001574 corresponds to repair kit 17H841. This appears to be part of a pump family with repair kits available for various models. Part 2001574 appears in torque specifications for tightening piston valve to piston rod. Uses same torque spec as models 2001548, 2001549, 2001573, 2001552, and 2001553. Different torque spec from models 2001550, 2001551, 2001554, 2001555, 2001556, 2001557 which use 55 ± 3 ft-lb.

Reference Manuals

• 344386 (Page 12) Airless Accessories Brochure
• 3J0617EN (Page 8)
• 3A9391 (Page 1) Displacement Pump, Repair, Manual 3A9391B
• 3B0070 (Page 53) Operation, Parts, 695XT, 795XT, 1095XT, Mark IV XT, Mark V XT, Mark VII XT, Electric Airless Sprayers
• X011699 (Page 74)
