GRACO 200325 - 1/8" Taper-Nose Hydraulic Grease Coupler, 8000 PSI Heavy-Duty Fitting

The GRACO 200325 is a heavy-duty hydraulic grease coupler designed for high-pressure lubrication systems. It features a compact 1/8" taper-nose design for secure, leak-free connection to standard grease fittings. Built for industrial and heavy-equipment environments, this coupler withstands up to 8000 PSI and delivers reliable performance in demanding lubrication applications.

Specifications

• Max Working Pressure: 8000 PSI (560 bar) Maximum Working Pressure

Compatible Equipment

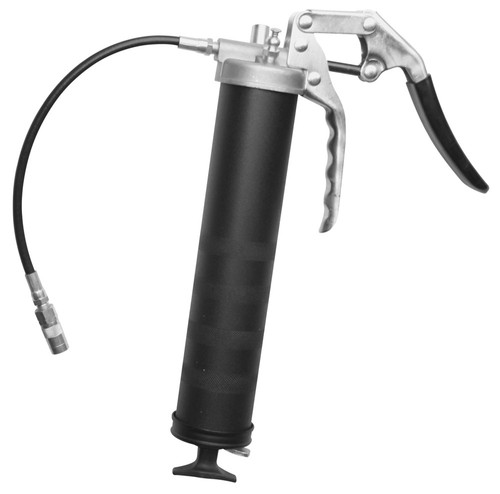

• Model 225914 - Han-Operated Portable Grease Dispenser Buckshot Luber
• 360-degree Grease Swivel and Coupler Kit 203597 - Fitting Union Swivel

Related Parts

• 151249 - NIPPLE, pipe
• 150278 - COUPLING, pipe hex
• 109150 - HOSE, coupled, 6 ft (1.8 m)
• 100176 - BUSHING, hex
• 200020 - Standard Button-Head Hydraulic Coupler
• 200021 - Giant Button-Head Hydraulic Coupler, 2000 PSI (140 Bar) Maximum Working Pressure
• 203198 - SWIVEL, 360-degree, 1/8 NPT

This part appears as reference 26 in the parts list for Model 225914. Quantity required is 1. Part of hydraulic coupler family including Standard Button-Head Hydraulic Coupler 200020 (2500 PSI) and Giant Button-Head Hydraulic Coupler 200021 (2000 PSI) This part is included in kit 203597 along with swivel part 203198. The kit has a maximum working pressure of 6000 PSI (420 bar).

Reference Manuals

• 306455 (Page 9) Hand Operated Portable Grease Dispenser Buckshot Luber
• 306708 (Page 2) Lube Equipment Couplers, Adapters, Nozzles, and Z-Swivels
• 309032 (Page 5) Pro-Shot Dispense Valve
• 3A3332 (Page 6) 3A3332 - Crack Injection Kits
