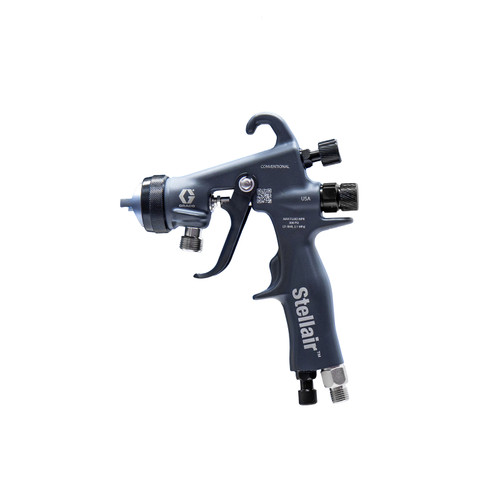

GRACO 2004145 - Stellair Conventional Air Spray Gun, General Industry, .055" PEEK Tip
Stellair Conventional Gun with 1.4 mm (.055 in) nozzle designed for general metal applications. Part of GRACO's Triton air spray system that delivers affordable, fine finish spraying with consistent spray pattern and uniform film thickness. The durable package needs little maintenance while providing professional results for metal coating applications.
Pressure feed air spray gun delivers the all-star ergonomics, performance, and serviceability industrial painters need to produce stellar results.,Whether you’re a custom shop or a high volume manufacturing facility, Stellair brings industry leading finish quality to these and other applications: automotive, metal, plastic, and wood.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Type | NPSM |
| Application | General Industry |
| Applicator Type | Manual |
| Compatible Material | CARC, Enamel, Epoxy, Fast-Set, High Solids, Latex, Plural-Component, Sealants, Solventborne, Urethane, Waterborne |
| Feed Type | Pressure Feed |
| Fluid Inlet Size (in) | 0.375 |
| Fluid Inlet Thread Type | NPSM |
| Fluid Orifice Size (in) | 0.055 |
| Gun Activation | Manual |
| Gun Type | Conventional Gun |
| Includes | Air Cap, Needle Assembly, Nozzle |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 2.1 |
| Maximum Fluid Pressure (psi) | 300 |
| Model | Stellair |
| Needle Tip Material | PEEK |
| Product Type | Spray Gun |
| Series | Manual |
| Spray Type | Air Spray |
| Technology Type | Conventional |
| Trigger Lock | Non-Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
Features
Applications
Compatible Equipment
Related Parts
This gun is specifically designed for use with Triton air spray packages and is optimized for general metal application work. Multiple package configurations are available with different mounting options (aluminum, stainless steel, pull mount, stand mount, cart mount, wall mount). Part of the Stellair ACE Pressure Feed Gun family, specifically the conventional spray technology model with 0.042 (1.1) nozzle size and PEEK tip construction. Reference manual 3B0141 for detailed specifications
