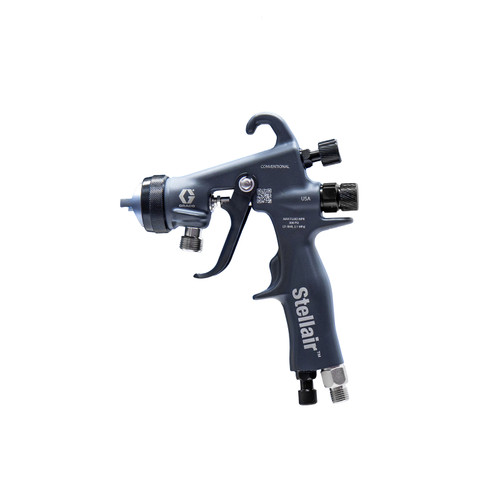

GRACO 2004169 - Stellair HVLP Air Spray Gun, High Solids .070" High-Wear Tip
Stellair ACE HVLP air spray gun designed for automotive applications, delivering precision efficiency and quality finishes. Built on an aluminum gun body with stainless steel fluid components for durability and superior performance.
Pressure feed air spray gun delivers the all-star ergonomics, performance, and serviceability industrial painters need to produce stellar results.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Type | NPSM |
| Application | High Solids |
| Applicator Type | Manual |
| Compatible Material | CARC, Enamel, Epoxy, Fast-Set, High Solids, Latex, Plural-Component, Sealants, Solventborne, Urethane, Waterborne |
| Feed Type | Pressure Feed |
| Fluid Inlet Size (in) | 0.375 |
| Fluid Inlet Thread Type | NPSM |
| Fluid Orifice Size (in) | 0.070 |
| Gun Activation | Manual |
| Gun Type | HVLP Gun |
| Includes | Air Cap, Needle Assembly, Nozzle |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 2.1 |
| Maximum Fluid Pressure (psi) | 300 |
| Model | Stellair |
| Needle Tip Material | High Wear |
| Product Type | Spray Gun |
| Series | Manual |
| Spray Type | Air Spray |
| Technology Type | HVLP |
| Trigger Lock | Non-Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
Features
Applications
Compatible Equipment
Related Parts
Kit Contents
Part of the Stellair ACE Pressure Feed Gun family designed for wide variety of applications with different nozzle sizes and spray technologies available High Solids gun models include high wear (Elite) packing, carbide needle, and carbide nozzle tip. This is the HVLP version for 0.070 (1.8) nozzle size in the High Solids application category. Part of High Solids product line. Includes Elite packing, carbide needle, and carbide tip nozzle.
Reference Manuals
GRACO 2004169 - Stellair HVLP Air Spray Gun, High Solids .070" High-Wear Tip
Stellair ACE HVLP air spray gun designed for automotive applications, delivering precision efficiency and quality finishes. Built on an aluminum gun body with stainless steel fluid components for durability and superior performance.
Pressure feed air spray gun delivers the all-star ergonomics, performance, and serviceability industrial painters need to produce stellar results.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Type | NPSM |
| Application | High Solids |
| Applicator Type | Manual |
| Compatible Material | CARC, Enamel, Epoxy, Fast-Set, High Solids, Latex, Plural-Component, Sealants, Solventborne, Urethane, Waterborne |
| Feed Type | Pressure Feed |
| Fluid Inlet Size (in) | 0.375 |
| Fluid Inlet Thread Type | NPSM |
| Fluid Orifice Size (in) | 0.070 |
| Gun Activation | Manual |
| Gun Type | HVLP Gun |
| Includes | Air Cap, Needle Assembly, Nozzle |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 2.1 |
| Maximum Fluid Pressure (psi) | 300 |
| Model | Stellair |
| Needle Tip Material | High Wear |
| Product Type | Spray Gun |
| Series | Manual |
| Spray Type | Air Spray |
| Technology Type | HVLP |
| Trigger Lock | Non-Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
Features
Applications
Compatible Equipment
Related Parts
Kit Contents
Part of the Stellair ACE Pressure Feed Gun family designed for wide variety of applications with different nozzle sizes and spray technologies available High Solids gun models include high wear (Elite) packing, carbide needle, and carbide nozzle tip. This is the HVLP version for 0.070 (1.8) nozzle size in the High Solids application category. Part of High Solids product line. Includes Elite packing, carbide needle, and carbide tip nozzle.
Reference Manuals
