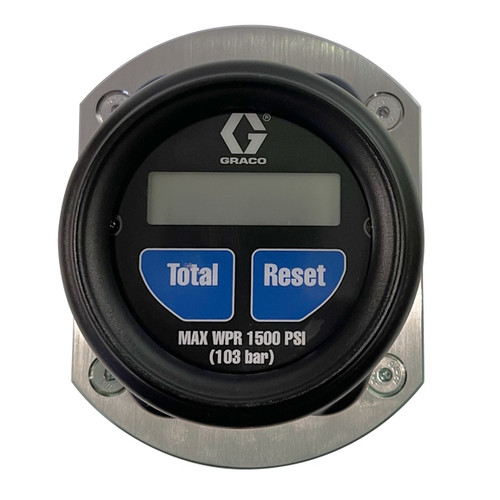

GRACO 2004292 - IM35 In-line Meter w/ Digital Display, 1", Aluminum
High-flow in-line meter with digital display for accurate flow measurement in demanding industrial applications. Features digital readout for precise monitoring of fluid flow rates up to 35 GPM, making it ideal for paint systems, gear lubrication, and fluid dispensing applications.
Graco's IM35 Pulse Output meter is designed for jobsites and service trucks requiring a higher flow in-line meter for tracking oil and diesel dispenses.
Additional Specifications
Specifications
| Accuracy (%) | +/- .5% |
| Compatible Material | Antifreeze, ATF, Diesel Fuel, Gear Oil, Oil |
| Inlet Size (in) | 1 |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (GPM) | 35 |
| Maximum Working Pressure (psi) | 1500 |
| Model | HF |
| Outlet Size (in) | 1 |
| Outlet Thread Type | NPT |
Features
Applications
Compatible Equipment
Related Parts
Part of GRACO's high-flow in-line meter family. SST versions available for water applications. Also available with pulse output option for system integration. Part of IM35 meter family with various alloy and threading options This is part of a meter housing family that includes 1 NPT, 1 1/2 NPT, and 3/4 BSPP versions. Uses plug part number 2006879 (Plug, 1 NPT). Electronic control available as separate component (part 11a†).
