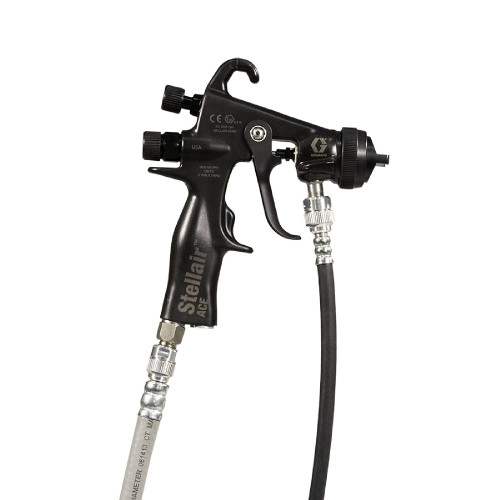

GRACO 2005972 - Stellair ACE Pressure-Feed Air Spray Gun, .055" Nozzle
Stellair ACE Pressure Feed Gun with LVMP .055 in (1.4 mm) nozzle. Features carbon reinforced polymer construction for a durable, lightweight gun that delivers superior finishes. Designed for precision efficiency and quality finishes with an aluminum gun body and stainless steel fluid components.
The unique carbon reinforced construction of this pressure feed air spray gun lightens the load for industrial painters. At 209 grams (7.4 ounces), Stellair ACE is up to 50 percent lighter than almost any other manual sprayer.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Type | NPSM |
| Application | General Industry |
| Applicator Type | Air Spray |
| Compatible Material | Enamel, Epoxy, Fast-Set, High Solids, Latex, Plural-Component, Sealants, Solventborne, Urethane, Waterborne |
| Feed Type | Pressure Feed |
| Fluid Inlet Size (in) | 0.125 |
| Fluid Inlet Thread Type | NPSM |
| Fluid Orifice Size (in) | 0.055 |
| Gun Activation | Manual |
| Gun Type | HVLP/LVMP Gun |
| Gun Weight (oz) | 7.4 |
| Hose Package | No Hose |
| Includes | Air Cap, Needle Assembly, Nozzle |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 2.1 |
| Maximum Fluid Pressure (psi) | 300 |
| Maximum Operating Temperature (°F) | 109 |
| Model | Stellair ACE |
| Series | Manual |
| Spray Type | Air Spray |
| Trigger Lock | Non-Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
| Wetted Parts | Stainless Steel, PEEK, Acetal, Chemically Resistant Fluoroelastamer, UHMWPE, PPS |
Features
Applications
Compatible Equipment
Related Parts
This gun is included as the applicator in Stellair ACE Package systems (part numbers 2006381, 2006382, and 2006383). Works with both conventional and electrostatic air spray setups. Part of the Stellair ACE pressure feed gun family, available in multiple nozzle sizes and configurations References manual 3B0141 for additional specifications
