Item #: 2006147
Price: $765.00
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

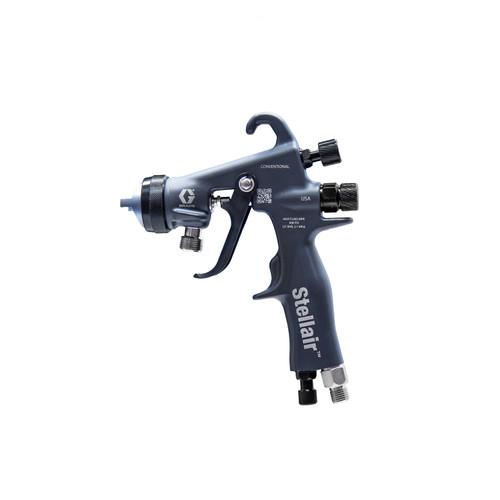

GRACO 2006147 - Stellair HVLP Air Spray Gun, General Industry, PEEK Tip (Specify Nozzle Size)
Stellair ACE Air Spray Gun designed for general industry applications, delivering precision efficiency and quality finishes. Built on an aluminum gun body with stainless steel fluid components and featuring carbon reinforced polymer construction for durability and lightweight ergonomics.
Pressure feed air spray gun delivers the all-star ergonomics, performance, and serviceability industrial painters need to produce stellar results.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Type | NPSM |
| Application | General Industry |
| Applicator Type | Manual |
| Compatible Material | Enamel, Epoxy, Fast-Set, High Solids, Latex, Plural-Component, Sealants, Solventborne, Urethane, Waterborne |
| Feed Type | Pressure Feed |
| Fluid Inlet Size (in) | 0.375 |
| Fluid Inlet Thread Type | NPSM |
| Fluid Orifice Size (in) | 0.110 |
| Gun Activation | Manual |
| Gun Type | HVLP Gun |
| Gun Weight (oz) | 14.5 |
| Includes | Air Cap, Needle Assembly, Nozzle |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 2.1 |
| Maximum Fluid Pressure (psi) | 300 |
| Maximum Operating Temperature (°F) | 109 |
| Model | Stellair |
| Needle Tip Material | PEEK |
| Series | Manual |
| Trigger Lock | Non-Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
| Wetted Parts | Stainless Steel, PEEK, Chemically Resistant Fluoroelastamer, UHMWPE |
Features
Applications
Compatible Equipment
Related Parts
Part of the Stellair ACE Air Spray Gun family. Nozzle size needs to be specified when ordering. Designed with unique atomization air jet that produces a uniform spray pattern with low overspray, reducing air cap build-up. Part of the Gun Models series for General Industry applications with 0.110 in. nozzle size This appears to be a model number for a spray gun component kit rather than an individual part. The table shows it corresponds to Air Cap Kit w/o O-Ring w/ Needle (2004527), Fluid Cartridge w/ Needle (2004193), Needle Assembly (2006023), and Needle Tip 5 pack (288184).
Reference Manuals
GRACO 2006147 - Stellair HVLP Air Spray Gun, General Industry, PEEK Tip (Specify Nozzle Size)
Stellair ACE Air Spray Gun designed for general industry applications, delivering precision efficiency and quality finishes. Built on an aluminum gun body with stainless steel fluid components and featuring carbon reinforced polymer construction for durability and lightweight ergonomics.
Pressure feed air spray gun delivers the all-star ergonomics, performance, and serviceability industrial painters need to produce stellar results.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Type | NPSM |
| Application | General Industry |
| Applicator Type | Manual |
| Compatible Material | Enamel, Epoxy, Fast-Set, High Solids, Latex, Plural-Component, Sealants, Solventborne, Urethane, Waterborne |
| Feed Type | Pressure Feed |
| Fluid Inlet Size (in) | 0.375 |
| Fluid Inlet Thread Type | NPSM |
| Fluid Orifice Size (in) | 0.110 |
| Gun Activation | Manual |
| Gun Type | HVLP Gun |
| Gun Weight (oz) | 14.5 |
| Includes | Air Cap, Needle Assembly, Nozzle |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 2.1 |
| Maximum Fluid Pressure (psi) | 300 |
| Maximum Operating Temperature (°F) | 109 |
| Model | Stellair |
| Needle Tip Material | PEEK |
| Series | Manual |
| Trigger Lock | Non-Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
| Wetted Parts | Stainless Steel, PEEK, Chemically Resistant Fluoroelastamer, UHMWPE |
Features
Applications
Compatible Equipment
Related Parts
Part of the Stellair ACE Air Spray Gun family. Nozzle size needs to be specified when ordering. Designed with unique atomization air jet that produces a uniform spray pattern with low overspray, reducing air cap build-up. Part of the Gun Models series for General Industry applications with 0.110 in. nozzle size This appears to be a model number for a spray gun component kit rather than an individual part. The table shows it corresponds to Air Cap Kit w/o O-Ring w/ Needle (2004527), Fluid Cartridge w/ Needle (2004193), Needle Assembly (2006023), and Needle Tip 5 pack (288184).
