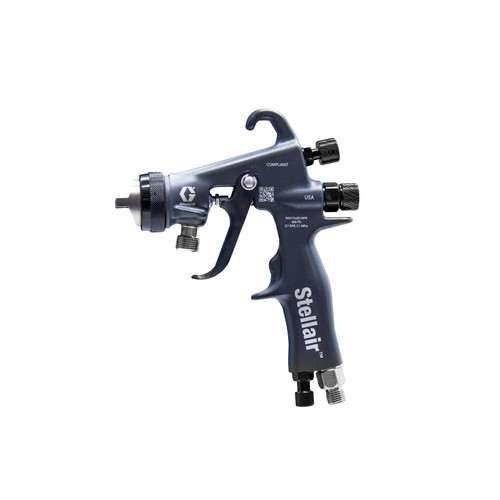

GRACO 2006149 - Stellair Air Spray Gun (Base Model, Requires Specific Nozzle/Cap Setup), PEEK Tip
Pressure feed air spray gun delivers the all-star ergonomics, performance, and serviceability industrial painters need to produce stellar results.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Type | NPSM |
| Application | General Industry |
| Applicator Type | Manual |
| Compatible Material | Enamel, Epoxy, Fast-Set, High Solids, Latex, Plural-Component, Sealants, Solventborne, Urethane, Waterborne |
| Feed Type | Pressure Feed |
| Fluid Inlet Size (in) | 0.375 |
| Fluid Inlet Thread Type | NPSM |
| Fluid Orifice Size (in) | 0.110 |
| Gun Activation | Manual |
| Gun Type | Compliant Gun |
| Gun Weight (oz) | 14.5 |
| Includes | Air Cap, Needle Assembly, Nozzle |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 2.1 |
| Maximum Fluid Pressure (psi) | 300 |
| Maximum Operating Temperature (°F) | 109 |
| Model | Stellair |
| Needle Tip Material | PEEK |
| Series | Manual |
| Trigger Lock | Non-Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
| Wetted Parts | Stainless Steel, PEEK, Acetal, Chemically Resistant Fluoroelastamer, UHMWPE |
Compatible Equipment
Related Parts
This is an HVLP spray technology gun model for wide pattern applications with 0.055 inch (1.4 mm) nozzle size
