Item #: 2006151
Price: $473.00
Call 888-654-8898
Need this Product for a Specific Application?
Use our handy finder to find the exact model for your needs.

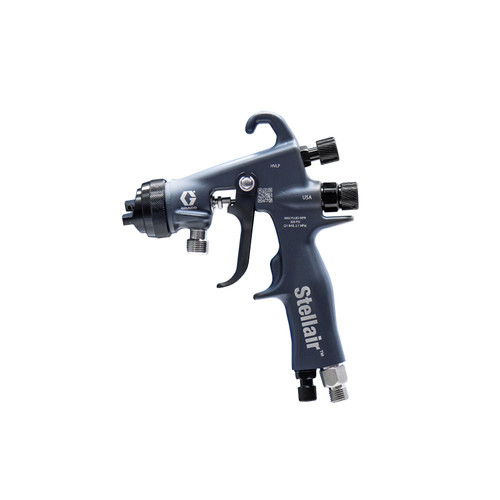

GRACO 2006151 - Stellair Conventional Air Spray Gun, Waterborne, PEEK Tip (Specify Nozzle Size)
Waterborne application spray gun with 0.042 in. (1.1) nozzle size, PEEK tip construction, Conventional spray technology
Pressure feed air spray gun delivers the all-star ergonomics, performance, and serviceability industrial painters need to produce stellar results.
Additional Specifications
Specifications
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Type | NPSM |
| Application | General Industry |
| Applicator Type | Manual |
| Compatible Material | Enamel, Epoxy, Fast-Set, High Solids, Latex, Plural-Component, Sealants, Solventborne, Urethane, Waterborne |
| Feed Type | Pressure Feed |
| Fluid Inlet Size (in) | 0.375 |
| Fluid Inlet Thread Type | NPSM |
| Fluid Orifice Size (in) | 0.042 |
| Gun Activation | Manual |
| Gun Type | Conventional Gun |
| Gun Weight (oz) | 14.5 |
| Includes | Air Cap, Needle Assembly, Nozzle |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 2.1 |
| Maximum Fluid Pressure (psi) | 300 |
| Maximum Operating Temperature (°F) | 109 |
| Model | Stellair |
| Needle Tip Material | PEEK |
| Series | Manual |
| Trigger Lock | Non-Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
| Wetted Parts | Stainless Steel, PEEK, Acetal, Chemically Resistant Fluoroelastamer, UHMWPE |
Compatible Equipment
Related Parts
Kit Contents
This is a gun model for waterborne applications with conventional spray technology. The related part 2004177 is the SST Tip version with the same 0.055 (1.4) nozzle size for waterborne applications. Part of Waterborne Conventional spray gun series with PEEK tip construction and 0.042 (1.1) mm nozzle size
Reference Manuals
