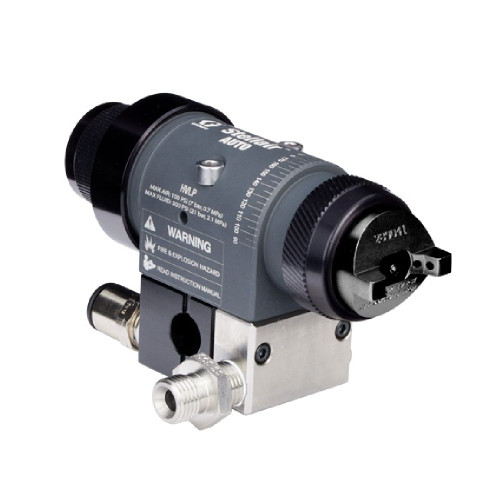

GRACO 2008541 - Stellair Automatic Conventional Air Spray Gun, .070" Ceramic Nozzle
Stellair Automatic Air Spray Gun designed for high wear applications that withstand abrasive materials. Features a 0.070" (1.8mm) nozzle size for industrial finishing applications including automotive, industrial metal and plastic components, wood products and architectural structures. Built with American quality - designed, manufactured, assembled, and factory-tested in the USA.
Conventional air spray gun produces stellar results on an automated paint line or in a robotic spray booth.
Additional Specifications
Specifications
| Application | High Wear |
| Applicator Type | Automatic |
| Body Material | Metal |
| Compatible Material | Ceramics, High Solids, Solvent-Borne Material, UV Coating, Waterborne |
| Fluid Adjustment Knob | N/A |
| Fluid Orifice Size (in) | 0.070 |
| Gun Model | Stellair |
| Gun Series | Automatic |
| Gun Type | Conventional Gun |
| Gun Weight (lb) | 1 |
| Manifold Type | Not Included |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate (oz/min) | 10 |
| Maximum Fluid Temperature (°F) | 120 |
| Maximum Fluid Working Pressure (MPa) | 2.1 |
| Maximum Fluid Working Pressure (psi) | 300 |
| Minimum Air Inlet Pressure (MPa) | 0.34 |
| Minimum Air Inlet Pressure (psi) | 50 |
| Model | Stellair |
| Needle Tip Material | Carbide |
| Nozzle Size (in) | 0.070 |
| Overall Height (in) | 1.9 |
| Overall Length (in) | 5.1 |
| Overall Width (in) | 1.63 |
| Series | Auto |
| Sound Power Level (dB(A)) | 88.82 |
| Sound Pressure Level (dB(A)) | 78.91 |
| Spray Type | Air Spray |
Features
Applications
Compatible Equipment
Related Parts
Part of the HIGH WEAR series in the Stellair Automatic Air Spray Gun family. Manifold not separately available for this model. For more information, refer to manual #407194. Part of the HIGH WEAR series designed specifically for applications involving abrasive materials. Includes side inlet manifold. For more information refer to manual #407194. A manifold is required. See Compatible Manifolds, page 39. This is a conventional spray technology gun model for high solids applications.
Reference Manuals
