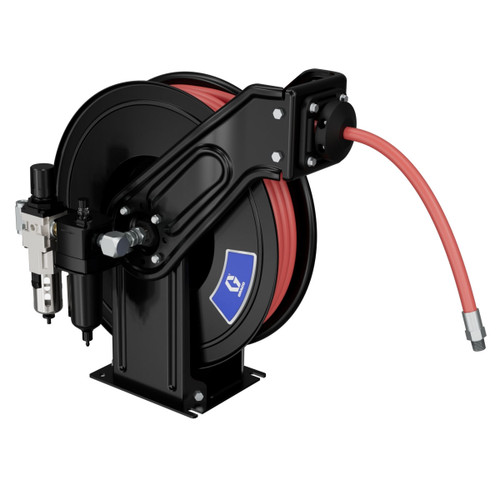

GRACO 2010972 - Air Hose Reel, 1/2" x 50 ft, with FRL Right, Black, 140 PSI

Graco’s heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame; steel spool; sealed components and innovative swivel design for high-quality performance in the most demanding applications. Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

Features:

• Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
• Optional Adjustable Arm - Easily change the arm position for your application, order with arm (XD models) or without (XN models)
• Durable Finish - Baked-on enamel finish protects reel from corrosion
• Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications
• Streamlined installation by eliminating separate FRL components and hose assemblies
• Includes a preinstalled Filter/Regulator and Lubricator (FRL)

Additional Specifications

• Max Working Pressure: 140 PSI (0.97 MPa, 9.7 bar)
• Type: Hose w/FRL

Specifications

Compatible Equipment

• XDX Models
• dual pedestal hose reels
• XDX20 frame

Related Parts

• 2009322 - Air Hose Reel, 1/2" x 50 ft, with FRL Left, Black, XDL6D#, XDL56#, XDL65#, XDM6D#, XDM65#

Kit Contents

• 15Y497 - Spool Kit
• 133508 - Swivel Kit

Models 2009322 and 2010972 come with a preinstalled Filter/Regulator and Lubricator (FRL). Available in black color only (last character indicates color: A = white, B = metallic blue, D = Black, F = yellow). This is a preinstalled Filter/Regulator and Lubricator (FRL) assembly that must be removed prior to removing nut (11) during spool replacement procedures. Referenced alongside part 2009322 in maintenance instructions. This appears to be a complete hose reel kit for air applications. Based on the hose reel label information, model number decoding indicates: XD = XDX Series, and the 7th character would be the Series Letter.

Reference Manuals

• 3A8626 (Page 2) SDX and XDX 10/20 Series Hose Reels
• 3A8689 (Page 2) Hose Reel Swivel Kit
