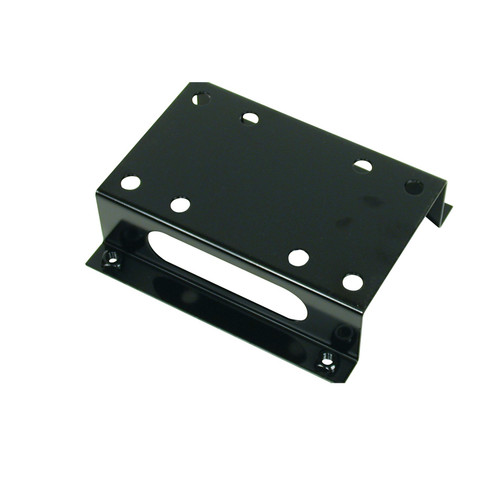

GRACO 203522 - Mounting Enclosed Reel for Ceiling Or Wall
2 Reel Base - Used with Size 5 Kit 24N675 and Size 10 Kits 24A935 / 203522
Specifications
- Length: 18.0 inch/457.2 mm
- Reel Capacity: 2 Reel
- Width: 7.75 inch/196.8 mm
- Mounting Hole Spacing: 7.50 inch/190.5 mm (each section)
- Edge Clearance: 0.50 inch/12.7 mm
- Center Spacing: 1.5 inch/38.1 mm
- Side Clearance: 0.75 inch/19.05 mm
- Inner Dimension: 6.75 inch/171.4 mm
- Mounting Hardware: 8 x 3/8-16 UNC-2B Weld Nut
Compatible Equipment
- Size 10 Cord Reel
- Size 10 Kits
- SD Series™ Cord and Light Reel
Related Parts
- 203521 - Mounting Enclosed Reel for Ceiling or Wall
- 203523 - 3-Reel Channel
- 203524 - Sd Series™ Open Channel Enclosure Kit, 4 Reel
- 203525 - Sd Series™ Open Channel Enclosure Kit, 5 Reel
- 203526 - Sd Series™ Open Channel Enclosure Kit, 6 Reel
- 24A935 - Hose Reel Mounting Channel Kit (Accommodates 2 Reels), 18.0"
- 24N675 - for Mounting Two SD Series Reel to Ceiling, 8 x 39=16 UNC Weld Nut
- 24N674 - for Mounting One SD Series Reel to Ceiling
- 24A934 - SD Series Open Reel Mounting Channel Kit (Accommodates 1 Reel), 3/8-16 UNC
Part of Size 5/Size 10 Enclosed Mounting Channel Kit series. For each Size 5 and Size 10 Reel: order 1 Enclosed Mounting Channel kit and 1 Side Panel kit. For each reel bank: order 1 End Panel kit. Installation instructions included with kit. Contact GRACO Customer Service for additional information about ordering these kits. This appears to be a Size 10 kit for a 2-reel mounting base configuration. The mounting channel accommodates two reels with specific spacing requirements. Part of SD Series™ Open Channel Enclosure Kit family for mounting cord and light reels
Reference Manuals
- 3A2592 (Page 2) SD Series Cord and Light Reel, Installation-Operation
- 3A2828 (Page 3) Hose or Cord and Light Reel Enclosure
- 3A7926 (Page 30) SD Series Hose Reels
- 3A8626 (Page 40) SDX and XDX 10/20 Series Hose Reels
