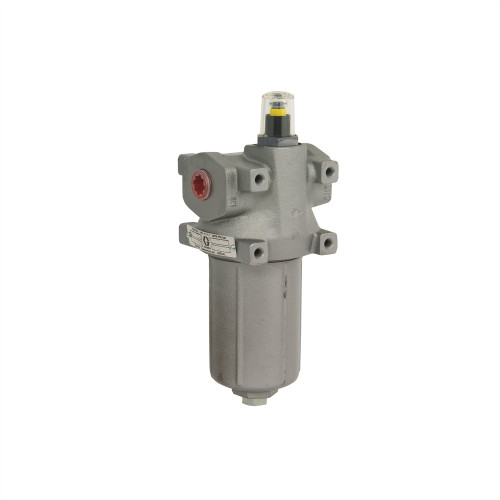

GRACO 207997 High Pressure Red Alert Filter, 150 mesh (95 micron) element
Filtering is your best defense against premature pump wear, gun wear, surface defects, reworks and tip plugging. The unique red pop-up indicator reveals when fluid filter element requires replacement. Built-in bypass valving directs continuous flow through separate passage when filter clogs, preventing downtime.
Large flow capacity is ideal for large circulation and supply systems.
- Red Alert indicator signals filter element replacement to ensure efficient filtration
- Integrated mounting holes make installation to frame and equipment easy
- Bottom port for installing quick flush ball valve
Compatible Equipment
- 207997 - High Pressure Red Alert Filter, 150 Mesh (95 Micron) Element only
Related Parts
- 210090 - Medium Volume High Pressure, Red Alert Filter, 30 Mesh (250 Micron) Element
- 210091 - Medium Volume High Pressure, Red Alert Filter, 100 Mesh (149 Micron) Element
- 210092 - Medium Volume High Pressure, Red Alert Filter, 200 Mesh (74 Micron) Element
- 207994 - High Pressure Red Alert Filter, 30 Mesh (590 Micron) Element, 1-1/4 NPT
- 207995 - High Pressure Red Alert Filter, 60 Mesh (250 Micron) Element
- 207996 - High Pressure Red Alert Filter, 100 Mesh (149 Micron) Element, 1-1/4 NPT
- 207998 - High Pressure Red Alert Filter, 200 Mesh (74 Micron) Element, 1-1/4 NPT
- 207999 - High Pressure Red Alert Filter, .040" Stab Point Element Mesh (590 micron) Element
- 208000 - High Pressure Red Alert Filter, .050" Stab Point Element Mesh (590 micron) Element
- 102929 - High Pressure Filter Housing
Reference Manuals
- 345020 (Page 59) Finishing Accessories
- 306987 (Page 1) High Pressure, Medium Volume
Specifications
| Filter Area (in²) | 225 |
| Inlet Size (in) | 1-1/4 |
| Inlet Thread Type | NPT |
| Material | Carbon Steel |
| Maximum Flow Rate (GPM) | 20 |
| Maximum Working Pressure (MPa) | 21 |
| Maximum Working Pressure (psi) | 3000 |
| Outlet Size (in) | 1-1/4 |
| Outlet Thread Type | NPT |
| Overall Depth (in) | 6.56 |
| Overall Height (in) | 13.08 |
| Overall Width (in) | 6.56 |
| Type | Filter |
| Weight (lb) | 30 |
| Wetted Material | Aluminum, Iron, Fluoroelastomer, PTFE, Plated Steel |
