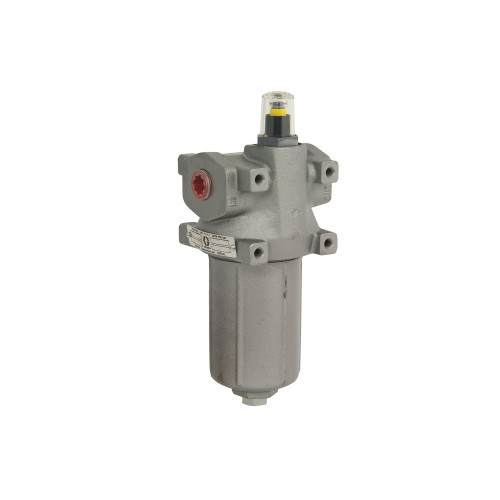

GRACO 208000 - High Pressure Red Alert Filter, .050" Stab Point Element Mesh (590 micron) Element, Carbon Steel, 3000 PSI
High pressure red alert filter with .050 inch stab point element for efficient filtration in large circulation and supply systems. Features red alert indicator that signals when filter element replacement is needed to ensure continuous efficient filtration.
Filtering is your best defense against premature pump wear, gun wear, surface defects, reworks and tip plugging. The unique red pop-up indicator reveals when fluid filter element requires replacement. Built-in bypass valving directs continuous flow through separate passage when filter clogs, preventing downtime.
- Red Alert indicator signals filter element replacement to ensure efficient filtration
- Integrated mounting holes make installation to frame and equipment easy
- Bottom port for installing quick flush ball valve
Additional Specifications
- Flow Rate: 20 gpm / 75 lpm
- Max Working Pressure: 3000 PSI (207 bar, 20.7 MPa)
- Material: CS (Carbon Steel)
- Mesh Size: .050 stab pt
- Filter Area: 225 sq in (1451 sq cm)
- Stab Point Size: 0.050 in. (1.3 mm)
- Filter Type: 0.050" SP Filter
- Category: High Pressure, Medium Volume Red Alert Filter
- Element Type: stab point
| Filter Area (in²) | 66 |
| Inlet Size (in) | 1-1/4 |
| Inlet Thread Type | NPT |
| Material | Carbon Steel |
| Maximum Flow Rate (GPM) | 6 |
| Maximum Working Pressure (MPa) | 21 |
| Maximum Working Pressure (psi) | 3000 |
| Outlet Size (in) | 1-1/4 |
| Outlet Thread Type | NPT |
| Overall Depth (in) | 6.56 |
| Overall Height (in) | 13.08 |
| Overall Width (in) | 6.56 |
| Type | Filter |
| Weight (lb) | 30 |
| Wetted Material | Aluminum, Iron, Fluoroelastomer, PTFE, Plated Steel |
Features
- Red Alert indicator signals filter element replacement for efficient filtration
- Large flow capacity ideal for large circulation and supply systems
- Integrated mounting holes make installation to frame and equipment easy
- Bottom port for installing quick flush ball valve
- .050 inch stab point element mesh
Applications
- Large circulation systems
- Large supply systems
- High pressure filtration applications
Compatible Equipment
- High pressure spray equipment
Related Parts
- 210090 - Medium Volume High Pressure, Red Alert Filter, 30 Mesh (250 Micron) Element
- 210091 - Medium Volume High Pressure, Red Alert Filter, 100 Mesh (149 Micron) Element
- 210092 - Medium Volume High Pressure, Red Alert Filter, 200 Mesh (74 Micron) Element
- 207994 - High Pressure Red Alert Filter, 30 Mesh (590 Micron) Element, 1-1/4 NPT
- 207995 - High Pressure Red Alert Filter, 60 Mesh (250 Micron) Element
- 207996 - High Pressure Red Alert Filter, 100 Mesh (149 Micron) Element, 1-1/4 NPT
- 207997 - High Pressure Red Alert Filter, 150 Mesh (95 Micron) Element
- 207998 - High Pressure Red Alert Filter, 200 Mesh (74 Micron) Element, 1-1/4 NPT
- 207999 - High Pressure Red Alert Filter, .040" Stab Point Element Mesh (590 micron) Element
- 102929 - High Pressure Filter Housing
Part of High Pressure Red Alert Filter family with various mesh sizes and filter areas available. Manual reference 306987. Part of the red alert filter family with various mesh sizes and stab point elements. All models share the same 3000 PSI maximum working pressure rating. Part number 108820 is the filter element for Model 208000 only. SP indicates a stab point filter according to the note. Other related filter elements are available for different models (207994-207999) with various MH (mesh) ratings from 30 MH to 200 MH.
Reference Manuals
- 345020 (Page 59) Finishing Accessories
- 306987 (Page 1) High Pressure, Medium Volume
