GRACO 20B473 - Ultra QuickShot Airless Sprayer, 2000 PSI

GRACO 20B473 - Ultra QuickShot Airless Sprayer, 2000 PSI

Expected ship date is Apr 8th 2026

  • Ships in 2-3 weeks

Most orders over $299
ship for free
| See Details

Have a Question?

ASK NATE

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

Essential Accessories

  • On-Demand Precision Flow-Control System
    • Quickly adjust material flow for extreme airless spray control
    • Easily dial-in to your desired pressure from 100-2,000 PSI
  • 6 ft Flexible Hose For Full Reach & Easy Hose Management
    • Easily prime, change colors, and clean in seconds
    • Gun and hose hold only 1 oz of coating
  • QuickShot ProConnect Airless Piston Pump
    • Durable long-life triple piston pump
  • 32 oz Pour-N-Go Cup
    • Easy fill design - refill on your hip
    • Spray small amounts FAST
  • Power to Take on Every Small Job
    • Comes with two DEWALT 20V Lithium-ion batteries
    • Spray up to one gallon on each battery
  • Ultimate Hands-Free Portability With Belt and Holster Attachment
  • Additional Specifications

    • Flow Rate: 1 oz of coating capacity
    • Max Working Pressure: 100-2,000 PSI (34-138 bar)
    • Tip Support: Low Pressure SwitchTips .008-.016
    • Battery: (2) DEWALT 20V MAX COMPACT 2.0 ah Lithium-Ion Batteries and (1) Charger
    • Filter Mesh: 60 & 100 Mesh
    • Power Source: Electric powered
    • Coating Compatibility: Water-based, solvent and flammable architectural coatings
    • Cup Capacity: 32 oz (1 L)
    • Hose Length: 6 foot (1.8M) flexible
    • Pump Type: QuickShot ProConnect triple piston

    Specifications

    MAXIMUM TIP SIZE (IN) 0.016
    MAXIMUM WORKING PRESSURE (PSI) 2000
    POWER SOURCE Battery Powered
    MAXIMUM WORKING PRESSURE (MPA) 14
    MODEL Ultra
    MAXIMUM WORKING PRESSURE (BAR) 138
    OVERALL HEIGHT (CM) 26.7
    OVERALL HEIGHT (IN) 10.5
    WEIGHT (KG) 2.9
    WEIGHT (LB) 6.4
    OVERALL LENGTH (CM) 30.5
    OVERALL WIDTH (IN) 6
    OVERALL LENGTH (IN) 12
    SERIES QuickShot
    OVERALL WIDTH (CM) 15.2
    TYPE Airless Spray Package
    BATTERY VOLTAGE (V) 20
    MAXIMUM OPERATING TEMPERATURE (°C) 32
    MAXIMUM OPERATING TEMPERATURE (°F) 90
    SOUND PRESSURE LEVEL (DB(A)) 83
    MINIMUM OPERATING TEMPERATURE (°C) 4
    MINIMUM OPERATING TEMPERATURE (°F) 40
    MAXIMUM STORAGE TEMPERATURE (°C) 45
    MAXIMUM STORAGE TEMPERATURE (°F) 113
    MINIMUM STORAGE TEMPERATURE (°C) 0
    MINIMUM STORAGE TEMPERATURE (°F) 32

    Features

    • On-gun pressure and flow control
    • Adjustable pressure 100-2,000 PSI
    • Fully repairable design
    • ProConnect compatibility
    • Storage bag included
    • 60 & 100 mesh filters included

    Applications

    • Water-based architectural coatings
    • Solvent-based coatings
    • Flammable architectural coatings
    • Doors
    • Accent walls
    • Fences/Furniture

    Compatible Equipment

    • Low Pressure SwitchTips .008-.016
    • DeWalt 20V Compact Lithium-ion Batteries
    • DeWalt 20V Lithium-Ion Battery Charger
    • RAC X FF LP .514 and .210 SwitchTips

    Related Parts

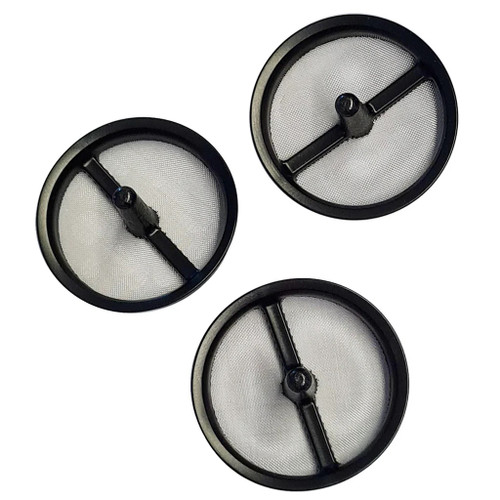

    • 18H073 - 60 Mesh Filter (3-Pack)
    • 18H074 - 100 Mesh Filter (3-Pack)
    • 18F891 - QuickShot Belt
    • 18F977 - QuickShot Holster
    • 17M883 - Storage Case
    • 18H080 - Lid Storage Plug (3-Pack)
    • 18H079 - Cup & Lid Assembly
    • 246215 - Tip Guard

    Kit Contents

    • RAC X FF LP 514 tip
    • RAC X FF LP 210 tip
    • (2) DEWALT 20V MAX COMPACT 2.0 ah Lithium-Ion Batteries
    • (1) DEWALT Charger
    • 60 & 100 Mesh filters
    • Storage bag
    • Manual 18H016
    • QuickShot Belt and Holster
    • RAC X FF LP .514 and .210 Reversible SwitchTips
    • 60 and 100 Mesh Inlet Filters
    • 4 oz Pump Armor Storage Fluid
    • 2 - DeWalt 20V Compact Lithium-ion Batteries
    • DeWalt 20V Lithium-Ion Battery Charger
    • Durable Tool Bag

    Part of GRACO's Ultra QuickShot handheld sprayer system with industry-leading warranty protection including 30-day satisfaction guarantee and 1-year warranty coverage. Designed specifically for small jobs where traditional airless sprayers may be overkill. Provides full flexibility of traditional airless spraying now optimized for small applications. Made in USA. Complete kit includes everything needed to start spraying. Patent pending technology on multiple features. Visit graco.com/UltraQuickShot to learn more.
