GRACO 213060 - Low Pressure Red Alert Filter, 6 gpm (22.7 lpm), 150 mesh (95 micron) element, 3/4

GRACO 213060 - Low Pressure Red Alert Filter, 6 gpm (22.7 lpm), 150 mesh (95 micron) element, 3/4

Item #: 213060

MSRP: Price: $1,099.33

Price: with strikethrough $1,099.33

Retail Price:

Sale Price: Price $970.00

(You save $129.33 )

Most orders over $299
ship for free | See Details

Have a Question?
ASK NATE

Get Expert Advice or

Call 888-654-8898

Get Expert Advice or

Call 888-654-8898

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

FIND MY PRODUCT

Item Description

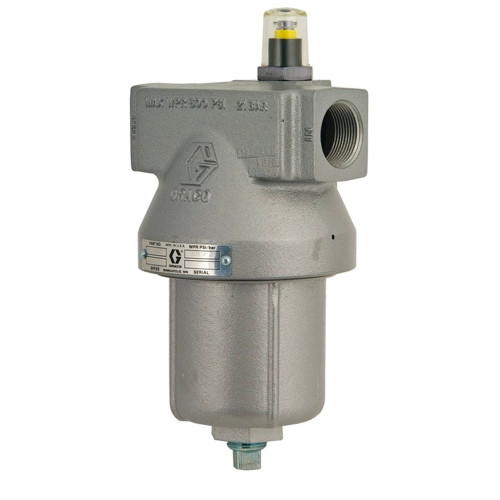

GRACO 213060 Low Pressure Red Alert Filter, 6 gpm (22.7 lpm), 150 mesh (95 micron) element, 3/4 NPT

Filtering is your best defense against premature pump wear, gun wear, surface defects, reworks and tip plugging. The unique red pop-up indicator reveals when fluid filter element requires replacement. Built-in bypass valving directs continuous flow through separate passage when filter clogs, preventing downtime.

Large flow capacity is ideal for large circulation and supply systems.

Red Alert indicator signals filter element replacement to ensure efficient filtration
Bottom port for installing quick flush ball valve

Specifications

Filter Area (in²)	36
Inlet Size (in)	3/4
Inlet Thread Type	NPT
Material	Aluminum
Maximum Flow Rate (GPM)	6
Maximum Working Pressure (MPa)	2.1
Maximum Working Pressure (psi)	300
Outlet Size (in)	3/4
Outlet Thread Type	NPT
Overall Depth (in)	3.75
Overall Height (in)	8.75
Overall Width (in)	4
Type	Filter
Weight (lb)	3
Wetted Material	Anodized Aluminum, Stainless Steel, PTFE, Plated Steel

Specifications

GRACO 213060 Low Pressure Red Alert Filter, 6 gpm (22.7 lpm), 150 mesh (95 micron) element, 3/4 NPT

Large flow capacity is ideal for large circulation and supply systems.

Red Alert indicator signals filter element replacement to ensure efficient filtration
Bottom port for installing quick flush ball valve

Specifications

Filter Area (in²)	36
Inlet Size (in)	3/4
Inlet Thread Type	NPT
Material	Aluminum
Maximum Flow Rate (GPM)	6
Maximum Working Pressure (MPa)	2.1
Maximum Working Pressure (psi)	300
Outlet Size (in)	3/4
Outlet Thread Type	NPT
Overall Depth (in)	3.75
Overall Height (in)	8.75
Overall Width (in)	4
Type	Filter
Weight (lb)	3
Wetted Material	Anodized Aluminum, Stainless Steel, PTFE, Plated Steel
