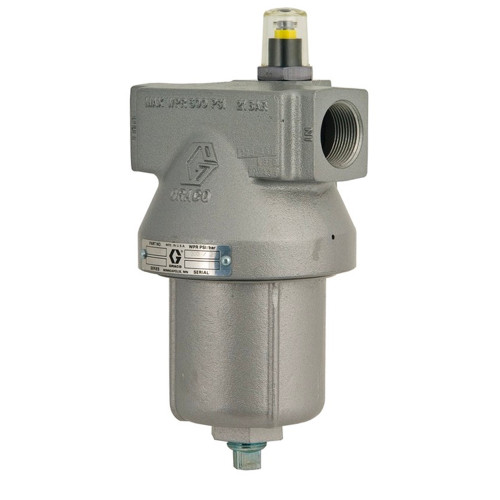

GRACO 213065 Low Pressure Red Alert Filter, 20 gpm (75.7 lpm), 150 mesh (95 micron) element, 3/4 NPT
Filtering is your best defense against premature pump wear, gun wear, surface defects, reworks and tip plugging. The unique red pop-up indicator reveals when fluid filter element requires replacement. Built-in bypass valving directs continuous flow through separate passage when filter clogs, preventing downtime.
Large flow capacity is ideal for large circulation and supply systems.
- Red Alert indicator signals filter element replacement to ensure efficient filtration
- Bottom port for installing quick flush ball valve
Specifications
| Filter Area (in²) | 225 |
| Inlet Size (in) | 3/4 |
| Inlet Thread Type | NPT |
| Material | Aluminum |
| Maximum Flow Rate (GPM) | 20 |
| Maximum Working Pressure (MPa) | 2.1 |
| Maximum Working Pressure (psi) | 300 |
| Outlet Size (in) | 3/4 |
| Outlet Thread Type | NPT |
| Overall Depth (in) | 5.5 |
| Overall Height (in) | 11 |
| Overall Width (in) | 6.06 |
| Type | Filter |
| Weight (lb) | 7 |
| Wetted Material | Anodized Aluminum, Viton, Stainless Steel, PTFE, Plated Steel |
