GRACO 222071 - Fire-Ball 300 Series 50:1b 400 lb. Grease Pump Lube Truck Package
As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.
Install the Fire-Ball 300 50:1 in grease dispense applications.
- Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
- Durable - Thick cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
- Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
- Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
- Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
- Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

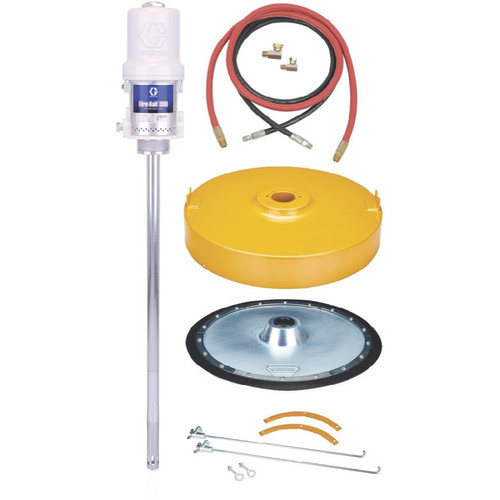

Package Includes:
- GRACO 239888 Fire-Ball 300 Series 50:1 400 lb (180 kg). Grease Pump
- GRACO 223845 Fire-Ball SD Follower Plate for 400 lb (55 gal) Drum
- GRACO 207361 Hold Down Kit for Fire-Ball Series 300 Cover-Mounted Package
- GRACO 207366 Kit Cover Drum
- GRACO 222072 Stationary Drum Fire-Ball 300, 50:1 Hose & Fitting Kit, 5000 PSI
Additional Specifications
- Type: 400 lb
- Unit Type: Mobile Unit
| Air Inlet Size (in) |
0.375 |
| Air Inlet Thread Gender |
Female |
| Air Inlet Thread Type |
NPT |
| Application |
Industrial |
| Compatible Material |
Grease |
| Fluid Inlet Thread Gender |
Female |
| Fluid Inlet Thread Type |
NPT |
| Fluid Inlet Type |
Slotted |
| Fluid Outlet Size (in) |
1/4 |
| Fluid Outlet Thread Gender |
Female |
| Fluid Outlet Thread Type |
NPT |
| Includes |
Fireball 50:1 300 Pump, Hose and Fitting Kit, Cover, Follow Plate, Hold-Down Kit |
| Maximum Air Working Pressure |
180 |
| Maximum Working Pressure (MPa) |
35 |
| Maximum Working Pressure (psi) |
5000 |
| Motor Type |
Pneumatic |
| Mount Location |
Drum Mount, Truck Mount |
| Power Type |
Pneumatic |
| Pump Ratio |
50:1 |
| Pump Weight (lb) |
22 |
| Series |
300 |
| Type |
Piston Pump Package |
| Wetted Material |
CS, Delrin, Buna-N, Polyurethane |
Compatible Equipment
- Mobile Mountings
- Truck Bed installations
- 241034 - Fire-Ball 300 Series 50:1, 120 Lb Grease Pump Stationary Supply Ce Package, 50:1 Fire-Ball 300, 400-lb Drum
Related Parts
- 222075 - Fire-Ball 425 Series 50:1 120 Lb. Grease Pump Lube Truck Package
- 243818 - Fire-Ball 425 Series 75:1 400 lb. Open-Head Cover-Mounted Package
- 24M274
- 222085 - Fire-Ball 300 Series 50:1 120 Lb. Grease Pump Lube Truck Package
- 223107 - Fire-Ball 425 Series 50:1 120 lb. Grease Pump Lube Truck Package
- 243817 - Fire-Ball 425 Series 75:1 120 lb. Open-Head Cover-Mounted Package
Kit Contents
- Hose Kit
- Cover
- Follow Plate
- Hold Down Kit
- Referenced to see parts on page - specific part numbers not listed on this page
Mobile unit configuration of Fire-Ball 300 pump with 50:1 ratio and 400 lb capacity. Does not have CE marking. Part of the Drum with Hold-Down Kit series for mobile mounting installations. Installation involves placing drum in desired location, placing hold-down lugs (R) or drum locators (S) around drum base and bolting to truck bed or mounting platform, then removing cover hold down brackets (P) and wing nuts (N) from hold down rods (K). This is item #2 in the 50:1 Fire-Ball 300 assembly. Quantity needed is 1. The manual references additional parts details on another page not shown here.
Reference Manuals
- 307880 (Page 2) Fire Ball 300 and 425 Grease Pumps
