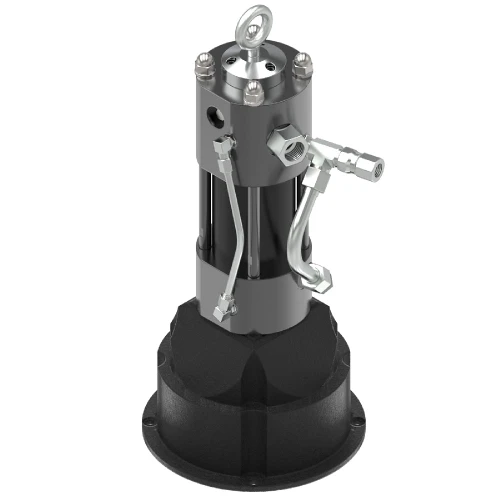

GRACO 223646 - Viscount Ii Hydraulic Motor, 1500 PSI
Specifications
- Max Working Pressure: 1500 psi (10 MPa, 103 bar) Maximum Hydraulic Fluid Input Pressure
- Series: C
- Application: Used as hydraulic drive for reciprocating pumps
- Use: For professional use only
- Model: 223646
Compatible Equipment
- reciprocating pumps
- Viscount II hydraulic pump
- Square Housings
Related Parts
- 30a
- 30b
- 30c
- 26C142 - Repair Kit, Piston, Motor, Hydraulic
Available in two housing configurations: Series C (Square Housings) and Series D (Cylindrical Housings). Document number 308048N EN. This is a square housing design that has been updated to cylindrical design. Model 223646 is listed as Series C in the Parts - Square Housings section on page 12. The manual indicates that square housings are being phased out in favor of cylindrical housings, and that replacement housing 16F140 may be needed, requiring upgrade housing 20B232 to convert to cylindrical design. This is a complete hydraulic motor assembly with square housing. Manual recommends replacing parts 30a, 30b, and 30c together in Kit 26C142. See service section for torque and lubrication information. Circled letters refer to connected points.
Reference Manuals
- 308048 (Page 1) Viscount® II Hydraulic Motor
- 311211 (Page 22) High-Flo Pumps
- 311831 (Page 18) High-Flo Pumps
- 3A0537 (Page 16) Viscount® 4-Ball Pumps , Instructions - Parts List, EN
- 3A3381 (Page 19) Viscount 4-Ball Pumps
