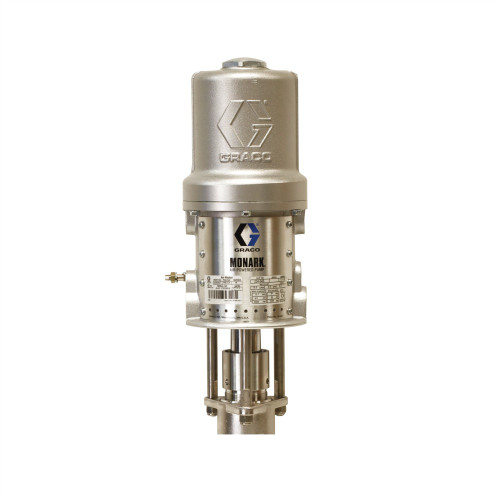

GRACO 224343 - Monark 5:1 Pneumatic 2-Ball Piston Pump, SS, UHMWPE/PTFE Packings, 325 PSI
Monark 5:1 pneumatic 2-ball piston pump designed for handling demanding industrial fluids including solventborne and waterborne coatings, high solids plural component coatings, resins, stains, lacquers, varnishes, cleaning fluids, acid-catalyzed materials, and high solid coatings. Features durable UHMWPE/PTFE construction for chemical resistance and reliable performance.
Designed for high production applications, Monark pumps provides uniform and easily controlled delivery with its reliable Monark air motor. Handles a wide range of fluids including cleaning fluids, high-solid coatings, acid-catalyzed materials, resins, high-solid plural component coatings, solventborne and waterborne fluids, stains, lacquers and varnishes.
- Drum and stubby length models available for mounting and application flexibility
- Positive displacement, 2-ball piston design provides uniform and easily controlled delivery
- Stainless steel or carbon steel models available to handle various fluids
- Fluid return stanchion for circulation back to the pump
- Ultra High Molecular Weight Polyethylene (UHMWPE) packings for extended pump life in abrasive fluids
Additional Specifications
- Flow Rate: up to 2 gpm (7.5 lpm) at 325 PSI with 100 PSI air pressure
- Max Working Pressure: up to 325 PSI (22.4 bar, 2.2 MPa) fluid outlet pressure
- Material: Stubby/SST construction with UHMWPE/T packings
- Air Pressure Range: 40-180 PSI (2.7-12 bar)
- Construction Type: Stubby/SST
- Maximum Working Pressure: 600 bar (8700 PSI)
- Maximum Inlet Pressure: 120 bar (1740 PSI)
- Pump Type: Monark
- Max Air Input Pressure: 120 PSI (0.8 MPa, 8.4 bar)
- Series: Series A
| Air Inlet Size (in) | 0.5 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Supply |
| Compatible Material | Waterborne, Solventborne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Fluid Section Type | 2-Ball |
| Includes | Stubby Length |
| Material | Stainless Steel |
| Maximum Air Inlet Pressure (psi) | 120 |
| Maximum Continuous Cycle Rate (CPM) | 60 |
| Maximum Flow Rate (GPM) | 2.5 |
| Maximum Operating Temperature (°F) | 180 |
| Maximum Working Pressure (MPa) | 6.2 |
| Maximum Working Pressure (psi) | 900 |
| Portable | Non-Portable |
| Pump Ratio | 5:1 |
| Seal Material | UHMWPE, PTFE |
| Standards Met | ATEX, CE |
| Type | Pneumatic Piston Pump |
| Wetted Material | Stainless Steel |
Features
- 5:1 pressure ratio for efficient fluid transfer
- Air-operated piston design for reliable operation
- Stainless steel wetted parts for durability
- UHMWPE/T packings for chemical compatibility
- Stubby configuration for compact installation
- Variable flow control with air pressure adjustment
Applications
- Fluid transfer operations
- Pumping medium viscosity fluids
- Chemical processing applications
- Industrial fluid handling
- Solventborne and waterborne fluids
- High solids plural component coatings
Compatible Equipment
- GRACO 5:1 Monark pump systems
- Monark pneumatic pump systems
- Industrial coating applications
Related Parts
Part 224343 is listed with 'T' packing designation. Performance charts show fluid flow rates from 0-5 gpm and air pressures from 40-180 PSI. Example calculation shows 2 gpm output at 325 PSI with 100 PSI air input consuming approximately 5 scfm. This is a complete pump unit with model designation 5:1, featuring stubby configuration with UHMWPE/PTFE sealing materials for chemical compatibility. This is a complete pump model with CE and UK CA certification markings and Ex II 2 G Ex h IIC T3 Gb explosion-proof rating
