GRACO 225094 Fire-Ball 300 Series 5:1 16 Gallon Oil Pump - Cover-Mounted Package
As the mainstay pump in the industry for decades, the reputation of Fire-Ball is unrivaled. Built to withstand the test of time with fewer moving parts, our flagship pump is built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.
Install the Fire-Ball 300 5:1 in high pressure, medium volume oil transfer applications such as automotive dealerships, fast lube centers, and service shops.
- Reliable Flow - A 3 inch (76.2 mm) differential air motor and the double-acting pump design provides reliable fluid flow and accurate dispense.
- Durable - Thick cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
- Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
- Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
- Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
- Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.

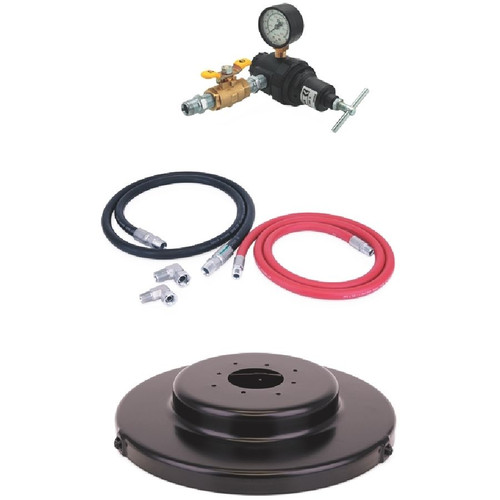

Package Includes:
- GRACO 203872 Fire-Ball 300 5:1 Oil Pump 16 gal/120 lb Drum Size for Cover Mount
- GRACO 24R350 Fire-Ball LD Drum Cover for Open-Head 120 lb or 70 lb Drums
- GRACO 222063 6' Hose Fitting Kit for Drum-Mounted Mini Fire-Ball 225 & 300 Pumps
- GRACO 224512 Kit Air Regulator
Specifications:
| Air Inlet Size (in) |
0.375 |
| Air Inlet Thread Gender |
Female |
| Air Inlet Thread Type |
NPT |
| Application |
Industrial |
| Compatible Material |
Oil |
| Fluid Inlet Size (in) |
1.5 |
| Fluid Inlet Thread Gender |
Female |
| Fluid Inlet Thread Type |
NPT |
| Fluid Outlet Size (in) |
1/2 |
| Fluid Outlet Thread Gender |
Female |
| Fluid Outlet Thread Type |
NPT |
| Includes |
Hose Kit, Cover |
| Maximum Air Working Pressure |
180 |
| Maximum Flow Rate (gpm @ 80 cpm) |
2.8 |
| Maximum Fluid Working Pressure (psi) |
900 |
| Maximum Working Pressure (MPa) |
6.2 |
| Maximum Working Pressure (psi) |
900 |
| Motor Type |
Pneumatic |
| Power Type |
Pneumatic |
| Pump Ratio |
5:1 |
| Pump Weight (lb) |
17 |
| Series |
300 |
| Type |
Piston Pump Package |
| Wetted Material |
Steel, Polyurethane, Aluminum, Buna-N |
