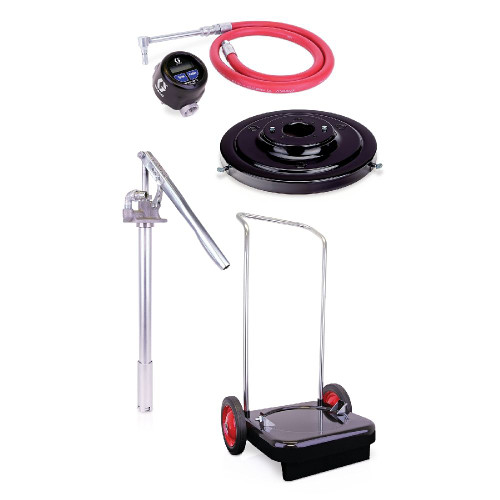

GRACO 225384 - Manually-Operated 16 Gallon Gear Lube Metered Dispensing Pump - Portable Package, 175 PSI
Designed for manual dispensing of fluid oil from bulk containers to point of application.
Additional Specifications
- Max Working Pressure: 175 PSI (1.2 MPa, 12 bar) Maximum Working Pressure
- Size: 120 lb.
- Operation: Hand-Operated
- Mounting: Portable Truck
- Cover: Cover
- Meter: In-line, electronic
- Height: 39 in. (991 mm)
- Width: 24 in. (610 mm)
- Weight: 49 lb. (22 kg)
- Series: Series B
- Model: 225384
Specifications
| Application | Industrial |
| Compatible Material | Oil, Grease |
| Includes | Hose and Meter Assembly, Hand Pump Assembly, Cover Assembly, Truck Assembly |
| Maximum Working Pressure (MPa) | 1.2 |
| Maximum Working Pressure (psi) | 175 |
| Reservoir Size (L) | 60.6 |
| Reservoir Size (gal) | 16 |
| Type | Manual Piston Pump |
Compatible Equipment
- Non-corrosive and non-abrasive oils and lubricants
Related Parts
- 225376 - 16 Gal. Pail Gear Lube Portable Dispensing Package
- 225378 - 16 Gal. Pail Gear Lube Portable Dispensing Package
- 225380 - 16 Gal. Pail Gear Lube Stationary Dispensing Package
- 225880 - Manually-Operated 16 Gallon Metered Dispensing Pump - Portable Package
Kit Contents
Part of Series B gear lube dispensers family. For professional use only. All gear lube dispensers are hand-operated, 120 lb. size with 175 PSI maximum working pressure. Part of a family of pumps with similar dimensions but different weights and widths. Model 225384 is the largest in width at 24 inches and heaviest at 49 lb. This is a complete gear lube dispenser system. The parts list references additional manuals for detailed component information (Lube Ranger Components manual, Series A Hose and Meter Assembly page 11, etc.). Model 225880 appears to be a related Automatic Transmission Fluid Dispenser in the same Series B family.
Reference Manuals
- 306436 (Page 1) Hand Pump Assembly, Gear Lube Dispensers; Automatic Transmission Fluid Dispenser
