GRACO 22602 - Sharpe Coalescer, 1/2" NPT(F) x 1/2" NPT(F), 1μm, 50 cfm, 175 PSI

Coalescer w/Automatic Drain (Part No. 22602, Series B)

Specifications

• Thread: 1/2 in. F.P.T. inlet and outlet
• Max Working Pressure: 175 PSI (1.2 MPa, 12 bar) max operating pressure
• Air Flow Capacity: 50 cfm (2.0 m³/min.) at 100 PSI (0.7 MPa, 7 bar)
• Max Temperature: 150°F (65°C)
• Filtration: removal of oil and sub-micronic particles down to .01 microns
• Series: Series B
• System Stage: STAGE 2

Compatible Equipment

• 6770 - Dryaire Membrane Air Drying System
• DRYAIRE MEMBRANE AIR DRYING SYSTEM

Related Parts

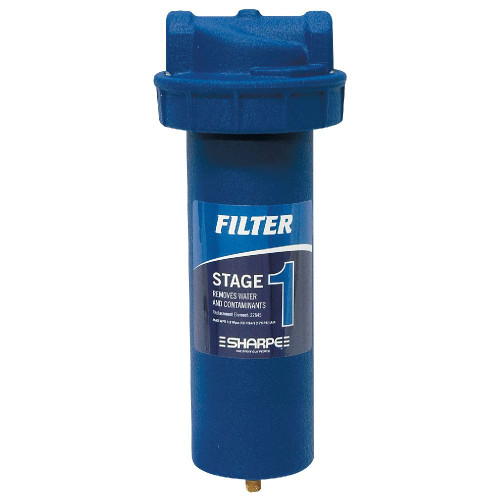

• 22601 - Air Filter w/Overnight Drain
• 22604 - Air Regulator Assembly, 1-6770-3 - Membrane Air Dryer
• 22601 - Sharpe Air Filter, 1/2" NPT(F) x 1/2" NPT(F), 3μm, 100 cfm, 1-6770-3
• 22695 - Shut-Off Valve Parts Kit
• 22695 - SHUT-OFF VALVE
• 22601 - FILTER, 1-6770-3 - MEMBRANE AIR DRYER
• 22604 - AIR REGULATOR

Part of the 3-Stage Point-of-Use System that comes assembled and is simple to install. Maximum working pressure for the system is 160 PSI (1.1 MPa, 11 bar). Part of a 3-stage air drying system. Provides removal of oil and sub-micronic particles down to .01 microns. Features automatic drain functionality. Part of the air treatment train in the membrane air drying system, positioned between the filter (22601) and the membrane air dryer (1-6770-3)

Reference Manuals

• 310596 (Page 1) Sharpe Dryaire Membrane Air Drying System Model 6770
