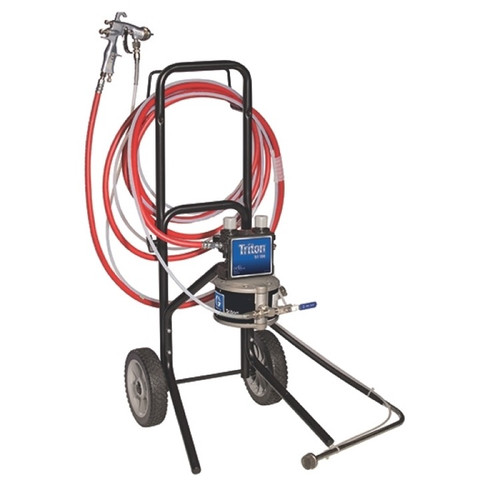

GRACO 233482 - Triton Aluminum Spray Package, Cart, Suction, Air & Fluid Hoses, AirPro Conventional Gun .055"Nozzle for Metal Applications, Aluminum
Triton air operated diaphragm pump package designed for metal applications, featuring affordable fine finish spraying with consistent spray pattern and uniform film thickness. This aluminum cart-mounted package with suction setup includes air and fluid hoses plus Stellair Conventional Gun with 1.4 mm (.055 in) nozzle for durable, low-maintenance operation.
Triton is an air-operated diaphragm spray package that applies a high quality, decorative finish to wood and metal parts. It is a more effective alternative to traditional pressure pots and standard diaphragm pumps.
- Superior finish quality for conventional, HVLP and compliant or electrostatic applications
- Supplies up to 35% extra air flow to gun for superior atomization
- Saves material and time during flushing, priming and color changes
- Delivers a consistent spray pattern and uniform film thickness
- Quick color changes and fast material refills save time and money
- Rugged, stainless steel or aluminum construction pump handles a wide variety of fluids
- Rugged, aluminum construction pump handles a wide variety of fluids
Additional Specifications
- Material: Aluminum
- Nozzle Size: .055 in (1.5 mm)
- Mount Type: Stand Mount
- Setup Type: Suction
- Hose Length Air: 7.6 m (25 ft)
- Hose Length Fluid: 7.6 m (25 ft)
- Feed Type: Suction
- Gun Type: Stellair Conventional Gun
- Series: Stand Mount, Series
- Pump Material: Aluminum
| Application | Metal |
| Compatible Material | CARC, Enamel, Epoxies, High Solids, Latex, Lacquer, Metallics, Stains, Single Components, Solventborne Paints, Solventborne, Varnish Primers |
| Feed Type | Suction Hose |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Type | NPT |
| Gun Included | 1 |
| Gun Model | AirPro |
| Gun Technology | Conventional |
| Gun Type | Air Spray |
| Includes | 25 ft Air Hose, 25 ft Fluid Hose, Applicator |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 8.5 |
| Maximum Working Pressure (psi) | 100 |
| Mount Location | Cart Mount |
| Mount Type | Cart Mount |
| Power Source | Air |
| Pressure Type | Low Pressure |
| Product Type | Spray Package |
| Pump Ratio | 1:1 |
| Pump Type | Pneumatic Diaphragm Pump |
| Series | 308 |
| Spray Type | Air-Powered |
| Sprayer Type | Air Spray |
| Technology Type | Conventional |
| Type | Air-Powered Sprayer |
| Weight (lb) | 29.98 |
Features
- Air operated diaphragm pump technology
- Affordable fine finish spraying capability
- Consistent spray pattern and uniform film thickness
- Durable package requiring little maintenance
- Cart mounted for mobility
- Suction setup for material feed
Applications
- Metal applications
- Fine finish spraying
- Wood applications
- General industrial coating
- Professional spray finishing
- Metal coating applications
Compatible Equipment
- Stellair Conventional spray guns
- Triton air operated diaphragm pumps
- TRITON spray finishing systems
- Stand Mount Series
Related Parts
- 233468 - Triton Aluminum Spray Package, Pail, Suction, Air & Fluid Hoses, AirPro Conventional Gun .055" Nozzle for Metal Applications
- 233469 - Triton SST Spray Package, Pail, Suction, Air & Fluid Hoses, AirPro Conventional Gun .055" Nozzle for Metal Applications
- 233470 - Triton Aluminum Spray Package, Pail, 60 PSI Regulator, Suction, Air & Fluid Hoses, AirPro HVLP Gun .055" Nozzle, Metal Applications
- 233471 - Triton SST Spray Package, Pail, 100 PSI Regulator, Suction, Air & Fluid Hoses, AirPro HVLP Gun .055" Nozzle, Metal Applications
- 233475 - Triton Aluminum Spray Package, Stand, Suction, Air & Fluid Hoses, AirPro Conventional Gun .055" Nozzle for Metal Applications
- 233476 - Triton SST Spray Package, Stand, Suction, Air & Fluid Hoses, AirPro Conventional Gun .055" Nozzle for Metal Applications
- 233483 - Triton SST Spray Package, Cart, Suction, Air & Fluid Hoses, AirPro Conventional Gun .055" Nozzle for Metal Applications
- 233489 - Triton Aluminum Spray Package, Wall, Air & Fluid Hoses, AirPro Conventional Gun .055 in Nozzle for Metal Applications
- 233490 - Triton SST Spray Package, Wall, Air & Fluid Hoses, AirPro Conventional Gun .055 in Nozzle for Metal Applications
- 233480 - Triton AL Pump Package, Cart Mount w/ Suction Hose, Applicator Not Included
Kit Contents
- 2004145 - Stellair Conventional Gun 1.4 mm (.055 in) nozzle
- AirPro Conventional Gun .055 in (1.5 mm) nozzle
Part of the Stellair General Metal Application Packages family. Package designed for pairing with conventional air spray guns for metal finishing applications. Bare packages do not include hose and gun per footnote. Part of the Cart-Mount Units family in the TRITON spray finishing package lineup. This is part of the Stand Mount Series with model number 233482, D. Has CE approval marking II 2 G Ex h IIB T6 Gb
Reference Manuals
- 300541 (Page 5) Triton
- 338753 (Page 2) Triton Spray Packages
- 309304 (Page 3) Triton 1:1 Spray Packages
- 309305 (Page 2) for Triton 1:1 Pump French, Spanish, Portuguese
