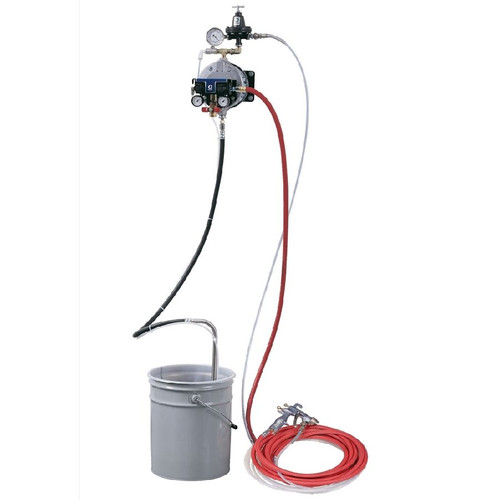

GRACO 233491 - Triton Aluminum Spray Package, Wall, 60 PSI Air Regulator & Fluid Hoses, AirPro HVLP Gun .055 in Nozzle for Metal Applications, Aluminum
Triton air operated diaphragm pump spray package designed for wall mounting with 60 PSI air regulator and fluid hoses, featuring Stellair HVLP Gun with 1.4 mm (.055 in) nozzle for affordable, fine finish spraying on metal applications with consistent spray pattern and uniform film thickness
Triton is an air-operated diaphragm spray package that applies a high quality, decorative finish to wood and metal parts. It is a more effective alternative to traditional pressure pots and standard diaphragm pumps.
- Superior finish quality for conventional, HVLP and compliant or electrostatic applications
- Supplies up to 35% extra air flow to gun for superior atomization
- Saves material and time during flushing, priming and color changes
- Delivers a consistent spray pattern and uniform film thickness
- Quick color changes and fast material refills save time and money
- Rugged, stainless steel or aluminum construction pump handles a wide variety of fluids
- Rugged, aluminum construction pump handles a wide variety of fluids
Additional Specifications
- Max Working Pressure: 60 PSI
- Material: Aluminum
- Nozzle Size: .055 in (1.5 mm)
- Air Hose Length: 7.6 m (25 ft)
- Fluid Hose Length: 7.6 m (25 ft)
- Gun Type: Stellair HVLP Spray Gun
- Fluid Regulator: 60 PSI (0.4 MPa, 4.1 bar) acetal
- Pump Type: Aluminum Pump
- Series: Wall Mount, Series
- Series Code: D
| Application | Metal |
| Compatible Material | CARC, Enamel, Epoxies, High Solids, Latex, Lacquer, Metallics, Stains, Single Components, Solventborne Paints, Solventborne, Varnish Primers |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Type | NPT |
| Gun Included | 1 |
| Gun Model | AirPro |
| Gun Technology | HVLP |
| Gun Type | Air Spray |
| Includes | 25 ft Air Hose, 25 ft Fluid Hose, Regulator, Applicator |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 8.5 |
| Maximum Working Pressure (psi) | 100 |
| Mount Location | Wall Mount |
| Mount Type | Wall Mount |
| Power Source | Air |
| Pressure Type | Low Pressure |
| Product Type | Spray Package |
| Pump Ratio | 1:1 |
| Pump Type | Pneumatic Diaphragm Pump |
| Series | 308 |
| Spray Type | Air-Powered |
| Sprayer Type | Air Spray |
| Technology Type | HVLP |
| Type | Air-Powered Sprayer |
| Weight (lb) | 19 |
Features
- Air operated diaphragm pump technology
- Durable package with little maintenance required
- Consistent spray pattern and uniform film thickness
- Wall mount configuration for space efficiency
- Includes air regulator and fluid hoses
- HVLP gun for fine finish applications
Applications
- Metal applications
- Fine finish spraying
- Wood applications
- Metal spray finishing
- Professional coating applications
- Industrial spray operations where space is limited
Compatible Equipment
- Stellair HVLP Gun
- TRITON Spray Finishing Systems
- Wall Mount Series
Related Parts
- 233492 - Triton SST Spray Package, Wall, 100 PSI AIr Regulator & Fluid Hoses, AirPro HVLP Gun .055 in Nozzle for Metal Applications
- 233484 - Triton Aluminum Spray Package, Cart, 60 PSI Regulator, Suction, Air & Fluid Hoses, AirPro HVLP Gun .055" Nozzle, Metal Applications
- 233485 - Triton SST Spray Package, Cart, 100 PSI Regulator, Suction, Air & Fluid Hoses, AirPro HVLP Gun .055" Nozzle, Metal Applications
- 233477 - Triton Aluminum Spray Package, Stand, 60 PSI Regulator, Suction, Air & Fluid Hoses, AirPro HVLP Gun .055 in Nozzle for Metal Applications
- 233478 - Triton SST Spray Package, Stand, 100 PSI Regulator, Suction, Air & Fluid Hoses, AirPro HVLP Gun .055" Nozzle, Metal Applications
- 233492 - Wall-Mount Stainless Steel 100 PSI version
- 233489 - Wall-Mount Aluminum bare package
- 233490 - Wall-Mount Stainless Steel bare package
- 233917 - Wall-Mount Aluminum 60 PSI AirPro Compliant Gun version
- 233918 - Wall-Mount Stainless Steel 100 PSI AirPro Compliant Gun version
Kit Contents
- 2004152 - Stellair HVLP Gun 1.4 mm (.055 in) nozzle
- Wall-mount spray package
- 60 PSI acetal fluid regulator
- Fluid hoses
- AirPro HVLP Gun with .055 in nozzle
Part of Stellair General Metal Application Packages family. Package includes aluminum construction with stainless steel fluid regulator. Wall-mount units do not include suction hose, siphon tube or gun. Must order separately according to the footnote. HVLP packages include fluid regulator with aluminum packages using 60 PSI acetal fluid regulator. This is part of the Wall Mount Series (D) and has CE approval (II 2 G Ex h IIB T6 Gb). Does not have UKCA approval according to the table.
