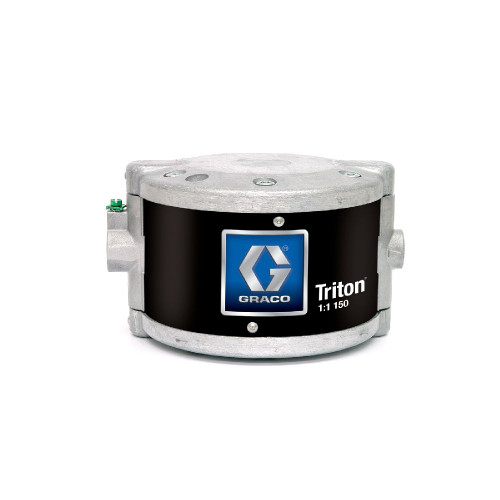

GRACO 233777 - Triton Air-Operated Diaphragm Pump, Bare, SST, BSPP, 115 PSI, BSPP threads

HOUSING, center; for Part No. 233777; stainless steel

Specifications

• Thread: BSPP threads
• Max Working Pressure: 115 PSI (0.8 MPa, 8 bar) Maximum Fluid Working Pressure / 115 PSI (0.8 MPa, 8 bar) Maximum Air Input Pressure
• Material: Stainless Steel
• Series: Series C
• Ratio: 1:1
• Pump Type: Diaphragm Pump

Compatible Equipment

• waterborne and solvent-based paints and catalysts
• 233777 - Triton Air-Operated Diaphragm Pump, Bare, SST, BSPP

Related Parts

• 233500 - Aluminum Pump, Series D, NPT threads
• 233501 - Stainless Steel Pump, Series C, NPT threads
• 233776 - Aluminum Pump, Series C, BSPP threads
• 233500 - NPT Threads NPT Al Bare Triton Air-Operated Diaphragm Pump, 7 Bar (0.7 MPa
• 233501 - NPT Threads Stainless NPT SS Bare Triton Air-Operated Diaphragm Pump, 7 Bar (0.7 MPa
• 233776 - Triton Air-Operated Diaphragm Pump, Bare, AL, BSPP
• 197679 - Repair Kit, Housing, Center
• 197680 - Cover, Fluid
• 198831 - Adapter, Pump Diaphragm
• 198832 - Adapter, Pump Diaphragm

For professional use only. This is a TRITON 1:1 Diaphragm Pump. U.S. and Foreign Patents Pending. This appears to be a complete pump assembly. Related parts include aluminum and stainless steel variants with different thread types (NPT and BSPP) in Series C and D configurations. Part 233777 appears to be a pump model that uses housing part 197679, cover parts 197680, fitting 198831, and screw 15D128. Related to models 233500, 233501, and 233776 in the same product family.

Reference Manuals

• 309303 (Page 1) Triton 1:1 Diaphragm Pump
• 406706 (Page 1) 24A155 Shaft and Bearing Repair Kit for Triton 308 Diaphragm Pumps, Genuine Graco and Accessories
