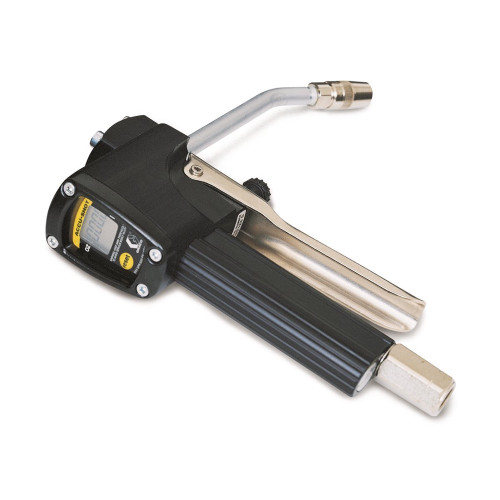

GRACO 233807 Standard Nozzle Extension and 1/4" NPT Inlet, U.S. Measurement, Includes Extension and Hydraulic Coupler NLGI#2
Designed to perform in heavy-equipment shops, fleet maintenance shops, municipal garages and higher-volume in-plant applications with longer plumbing runs and larger fluid usage.
Typical applications include heavy-duty dealerships, fleet service facilities, in-plant, lube trucks, and mining.
- Easy-to-Read LCD
- Easily reset electronic display.
- Accurate Grease Metering
- Utilizes two standard AA alkaline batteries.
- Handles Pressure up to 5,000 psi (345 bar)
- Flow up to 36 oz/min (1 kg/min).
Compatible Equipment
- 225006 - Fire-Ball 300 Series 50:1 120 lb. Grease Pump Portable Package w/ Caster Base
Related Parts
- 109151 - 1/4" x 12 ft Lubrication Hose 5000 psi
- 114558 - Air Line Coupler
- 169971 - Air Line Fitting, 3/8 NPT(M)
- 202577 - Zinc-Plated Steel Z-Swivel w/ Leather Packings, 1/4 NPT(F) x 1/4 NPT(M)
- 233933 - Standard Nozzle Extension & 1/4" NPT Inlet, Metric Measurement, Includes Extension & Hydraulic Coupler
Reference Manuals
- 307878 (Page 14) 50:1 Ratio Fire-Ball Lubrication Pump
- 309454 (Page 1) Accu-Shot Electronic Grease Meter
Specifications:
| Approvals | CE |
| Compatible Material | Grease |
| Dispense Type | Manual |
| Extension Type | Rigid |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Thread Gender | Female |
| Includes | Extension, Hydraulic Coupler |
| Inlet Size (in) | 1/4 |
| Inlet Thread Type | NPTF |
| Maximum Operating Temperature (°F) | 140 |
| Maximum Storage Temperature (°F) | 158 |
| Maximum Working Pressure (MPa) | 34.5 |
| Maximum Working Pressure (psi) | 5000 |
| Meter Accuracy (%) | ±0.3 |
| Meter Technology | Oval Gears |
| Metering Gun Weight (lb) | 2.2 |
| Nozzle Type | Rigid |
| Outlet Size (in) | 1/8 |
| Outlet Thread Type | NPTF |
| Overall Height (in) | 8.8 |
| Overall Length (in) | 3.2 |
| Overall Width (in) | 1.8 |
| Power Type | Electric |
| Recommended Environment | Indoor |
| Repeatability | ±0.1 |
| Trigger Lock | Non-Locking |
| Type | Electronic Metered Dispense Valve |
| Valve Type | Metered |
| Warranty | 2 |
