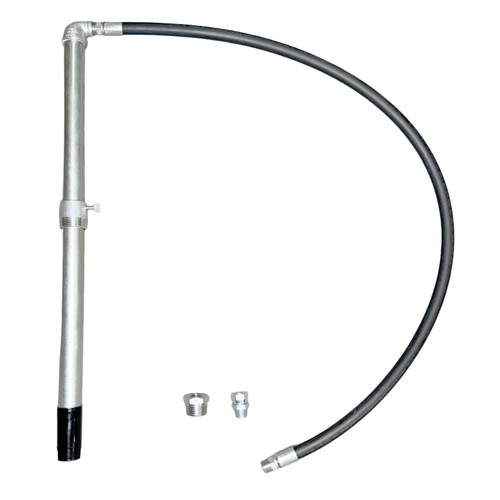

GRACO 236054 - 6' Suction Kit for 55 Gal. Drums, 1-1/2 NPT(F)
Suction kit designed for Monark 1.5:1 and 2:1 pneumatic pumps to efficiently siphon material out of 55 gallon (200 L) closed-end drums, enabling easy transfer of coatings, resins, stains and other fluid materials from drum containers.
Specifications
- Length: 6 ft (1.8 m)
- Thread: 1-1/2 NPT(F)
- Material: nitrile hose
- Drum Size: 55 gal (200 L)
- Outlet Fitting: 1-1/2 NPT(F)
- Hose Type: coupled
- Sealant Required: PERMA-LOK LH 150 sealant to threads
Features
- 6 ft nitrile hose for flexible reach
- Bung adapter for drum connection
- 1-1/2 NPT(F) outlet fitting
- Designed for closed-end drum applications
Applications
- Siphoning coatings from drums
- Transferring resins and stains
- Moving lacquers and varnishes
- Handling high solid materials
- Processing solventborne and waterborne fluids
Compatible Equipment
- Monark 1.5:1 pneumatic pumps
- 55 Gal. Drums
- 55-gallon containers
Related Parts
- 207484 - Siphon Kit, Aluminum (Monark 5:1 only)
- 208259 - Siphon Kit, Carbon Steel (Monark 5:1 only)
- 208920 - Siphon Kit, Aluminum (Monark 5:1 only)
Kit Contents
- Siphon tube
- Bung adapter
- 6 ft (1.8 m) nitrile hose
- 1-1/2 NPT(F) outlet fitting
- 100220 - THUMBSCREW, 5/16-18 x 1"
- 101496 - BUSHING, pipe
- 109105 - HOSE, coupled, 6 ft
- 157785 - ADAPTER, straight union, 3/4 NPT(m) x 3/4 NPT(F) swivel
- 112175 - ELBOW, reducing
- 188845 - ADAPTER, bung
- 220691 - TUBE, drop
Specifically designed for Monark 1.5:1 and 2:1 models only, not compatible with 5:1 ratio pumps which have separate siphon kit options Apply PERMA-LOK LH 150 sealant to threads as indicated in assembly diagram A suction tube kit is available for siphoning from 55-gallon containers
Reference Manuals
- 344905 (Page 7) Supply Pumps Brochure
- 308335 (Page 1) Suction Kit
- 308390 (Page 5) Dyna-Star 1/4:1 Ration Universal Pump and Reciprocator
- 309353 (Page 2) Air-Operated Double Diaphragm Bulk Transfer Packages
