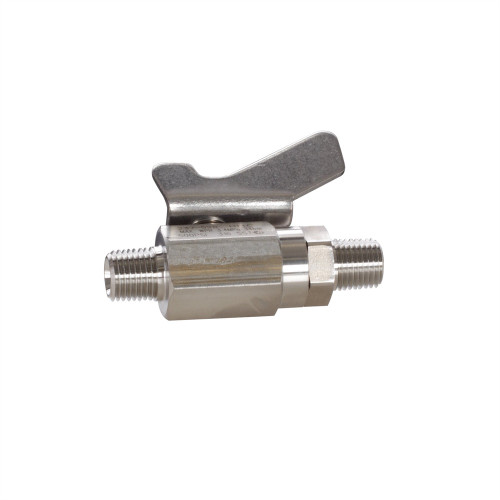

GRACO 237528 - Low Pressure Ball Valve Compatible w/ stainless steel, Catalyst & Waterborne Materials, 1/4" NPT(m) x 1/4" NPT(m), 500 PSI
Stainless steel and PTFE ball valve designed for finishing applications with catalyst, waterborne, and other finishing materials. Features multiple connection options to meet specific application needs with reliable 35 bar (500 PSI) pressure rating.
Use for on/off fluid control. Allows safer system operation by permitting relief of fluid pressure or isolation of components from pressure during maintenance. Ball vales must be used in the fully open or closed position. Do not throttle the valve - it could cause premature seal failure.
- Stainless steel and PTFE materials are compatible with catalyst, waterborne, and other finishing materials
- Many different connection options to meet your specific needs
Additional Specifications
- Max Working Pressure: 35 bar (500 PSI)
- Material: Stainless steel and PTFE
- Series: C
- Cavity Type: Closed Cavity
- Npsm Threading: meets SAE J516 fitting recommendations
| Handle Type | Lever |
| Inlet Size (in) | 1/4 |
| Inlet Thread Gender | Male |
| Inlet Thread Type | NPT |
| Maximum Working Pressure (MPa) | 3.5 |
| Maximum Working Pressure (psi) | 500 |
| Outlet Size (in) | 1/4 |
| Outlet Thread Gender | Male |
| Outlet Thread Type | NPT |
| Seal Material | PTFE |
| Type | Ball Valve |
Features
- Stainless steel and PTFE materials compatible with catalyst, waterborne, and other finishing materials
- Multiple connection options to meet specific needs
- 35 bar (500 PSI) pressure rating
- Ball valve design for reliable shut-off
Applications
- Finishing applications
- Catalyst material handling
- Waterborne coating systems
- General finishing material flow control
Related Parts
- 237529 - Low Pressure Ball Valve Compatible w/ stainless steel, Catalyst & Waterborne Materials, 1/4" NPT(m) x 3/8" npsm(m)
- 237530 - Low Pressure Ball Valve Compatible w/ stainless steel, Catalyst & Waterborne Materials, 3/8" NPT(m) x 1/4" NPT(m)
- 237531 - Low Pressure Ball Valve Compatible w/ stainless steel, Catalyst & Waterborne Materials, 3/8" NPT(m) x 3/8" NPT(m)
- 237532 - Low Pressure Ball Valve Compatible w/ stainless steel, Catalyst & Waterborne Materials, 3/8" NPT(F) x 3/8" NPT(F)
- 237533 - Low Pressure Ball Valve Compatible w/ stainless steel, Catalyst & Waterborne Materials, 3/8" npsm(m) x 3/8" NPT(m)
- 237535 - Low Pressure Ball Valve Compatible w/ stainless steel, Catalyst & Waterborne Materials, 3/8" NPT(F) x 3/8" npsm(m)
- 237537 - Low Pressure Ball Valve Compatible w/ stainless steel, Catalyst & Waterborne Materials, 3/8" OD Tube x 3/8" OD Tube
- 237538 - Low Pressure Ball Valve Compatible w/ stainless steel, Catalyst & Waterborne Materials, 3/8" OD Tube x 3/8" NPT(m)
- 237539 - Stainless Ball Valve, 3/8" NPSM(M), 3/8" OD, 35 Bar (500 PSI)
Part of GRACO's ball valve family for finishing accessories. Instruction manual reference: 307628 Part of the 316 Series low-pressure ball valves family. npsm threaded ends meet SAE J516 fitting recommendations. Part 237528 is listed in the Canadian Registration Numbers (CRN) for Alberta (0C4155.2) and Ontario (0C4874.5). It appears to be part of a series of ball valve models (237528-237543) that share the same maximum fluid working pressure of 35 bar/3.5 MPa (500 PSI) and are made from 316 Series Stainless Steel.
Reference Manuals
- 345020 (Page 75) Finishing Accessories
- 307628 (Page 1) Low-Pressure Ball Valves and
- 310563 (Page 17) 1:1 Ratio Husky Circulation Plgs., Wall Mount or Floor Stand
- 310564 (Page 17) Glutton Circulation Packages, Wall Mount and Floor Stand
- 310566 (Page 17) President Circulation Packages, Wall Mount, Floor Stand and High Flo
