GRACO 237601 - Kit Installation
Specifications
- Max Working Pressure: 600 PSI (4.2 MPa, 41 bar)
Compatible Equipment
- GRACO pump systems shown in typical installation
- Universal pump dispensing valve side
- Series C, Fire-Ball 425, 3:1 pump
Related Parts
- 110223 - Bleed-type master air valve
- 222011 - Ground wire
- 210658 - Fluid drain valve
- 235998 - Kit Installation
- 237893 - 237893 Pressure Relief Kit, 900 PSI (62 Bar) Maximum Working Pressure
- 237904 - 237904 Kit Installation, Male Threads On Tee, 1600 PSI (11 MPa, 110 Bar)
- 238899 - Pressure Relief Kit 238899, 150 PSI (1 MPa, 10 Bar)
- 240429 - Thermal Relief Installation Kit, 11-1/2 NPT(M) Threads Mentioned In Installation
- 248296 - Kit Installation Therm Relief
- 248324 - Thermal Relief Installation Kit

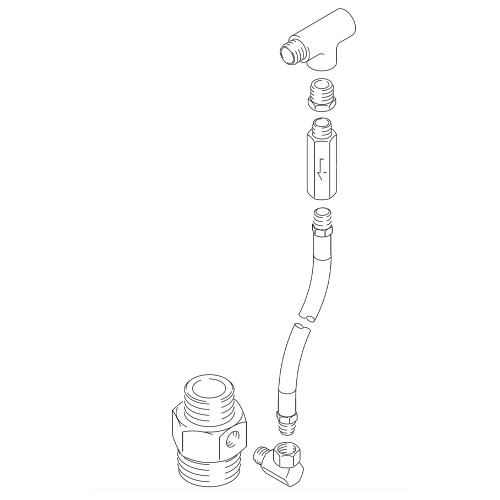

Required for permanent installations. Labeled as 'R' in the installation diagram Fig. 1. Install the thermal relief kit on the dispensing valve side of the pump to assist in relieving pressure in the pump, hose and dispensing valve due to heat expansion. Available from GRACO. This is a thermal relief kit. The thermal relief kits are recommended based on GRACO pump and component performance. You may need to change the thermal relief kit selection from application to application, depending on pump air operating pressure and fluid working pressures of system components.
Reference Manuals
- 307906 (Page 4) 1:1 Ratio Fast-Ball Pumps
- 308403 (Page 2) Pressure Relief Kits
- 308485 (Page 5) 3:1 Fire-Ball 425 Pump.
- 312668 (Page 27) LDP5 (Preset) Electronic Metered Dispense Valves
- 312789 (Page 15) SDV15 and XDV20 Dispense Valve
