GRACO 238286 - Repair Kit for Repairing 5:1 Ratio Fire-Ball Pumps

GRACO 238286 - Repair Kit for Repairing 5:1 Ratio Fire-Ball Pumps

GRACO 238286 - Repair Kit for Repairing 5:1 Ratio Fire-Ball Pumps

GRACO 238286 - Repair Kit for Repairing 5:1 Ratio Fire-Ball Pumps

Item #: 238286

Price: with strikethrough $242.00

Retail Price:

Sale Price: Price $200.59

QTY:

In Stock – Usually ships the same business day

Most orders over $299
ship for free | See Details

Have a Question?
ASK NATE

Get Expert Advice or

Call 888-654-8898

Get Expert Advice or

Call 888-654-8898

Need this Product for a Specific Application?

Use our handy finder to find the exact model for your needs.

FIND MY PRODUCT

Related Items

Item Description
GRACO 238286 - Repair Kit for Repairing 5:1 Ratio Fire-Ball Pumps

Specifications
- Ratio: 5:1
- Usage: For professional use only
Compatible Equipment
- 5:1 Fire-Ball Pump
- displacement pump
- air motor
- Air Motor assemblies (based on context of page)
- 5:1 Fire-Ball 300 Pump
Kit Contents
- Parts with ◆ symbol are included in Kit 238286
- 236079 - VALVE, poppet (qty 2)
- 112561 - PACKING, block (qty 1)
- 160625 - O-RING, buna-N (qty 1)
- 160624 - O-RING, square, buna-N (qty 1)
- 158367 - GROMMET, rubber (qty 2)
- 170709 - VALVE, poppet (qty 1)
- 160621 - O-RING, nitrile rubber (qty 1)
- 160261 - NUT, adjusting (qty 4)
- 160618 - LOCK WIRE, transfer valve (qty 2)
- 113423 - PACKING, o-ring (qty 1)
- 156633 - O-RING, buna-N (qty 1)
- 156641 - O-RING, buna-N (qty 1)
Kit includes repair parts for the pump and air motor. Use all parts in the kit for best results. Mentioned in both Displacement Pump Service and Air Motor and Throat Service sections. Kit 238286 must be purchased separately. The manual indicates that parts marked with ◆ symbol are included in this kit, but the specific part numbers are not clearly listed on this page. Document number 406333C. For complete warnings refer to the 5:1 Fire-Ball 300 Pump Instruction manual (306518).

Reference Manuals
- 306518 (Page 8) 5:1 Fire-Ball 300 Pump
- 406333 (Page 1) Repair Kit (238286), Accessory
Specifications
GRACO 238286 - Repair Kit for Repairing 5:1 Ratio Fire-Ball Pumps

Specifications
- Ratio: 5:1
- Usage: For professional use only
Compatible Equipment
- 5:1 Fire-Ball Pump
- displacement pump
- air motor
- Air Motor assemblies (based on context of page)
- 5:1 Fire-Ball 300 Pump
Kit Contents
- Parts with ◆ symbol are included in Kit 238286
- 236079 - VALVE, poppet (qty 2)
- 112561 - PACKING, block (qty 1)
- 160625 - O-RING, buna-N (qty 1)
- 160624 - O-RING, square, buna-N (qty 1)
- 158367 - GROMMET, rubber (qty 2)
- 170709 - VALVE, poppet (qty 1)
- 160621 - O-RING, nitrile rubber (qty 1)
- 160261 - NUT, adjusting (qty 4)
- 160618 - LOCK WIRE, transfer valve (qty 2)
- 113423 - PACKING, o-ring (qty 1)
- 156633 - O-RING, buna-N (qty 1)
- 156641 - O-RING, buna-N (qty 1)
Kit includes repair parts for the pump and air motor. Use all parts in the kit for best results. Mentioned in both Displacement Pump Service and Air Motor and Throat Service sections. Kit 238286 must be purchased separately. The manual indicates that parts marked with ◆ symbol are included in this kit, but the specific part numbers are not clearly listed on this page. Document number 406333C. For complete warnings refer to the 5:1 Fire-Ball 300 Pump Instruction manual (306518).

Reference Manuals
- 306518 (Page 8) 5:1 Fire-Ball 300 Pump
- 406333 (Page 1) Repair Kit (238286), Accessory

Technical Support

Quick view

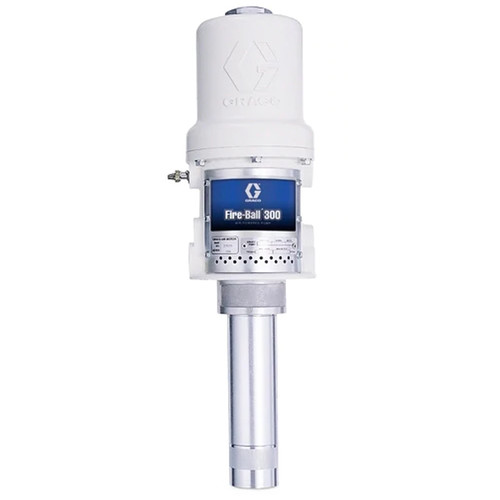

GRACO 203876 - Fire-Ball 300 Series 5:1 Universal Size Oil Pump, 900 PSI
