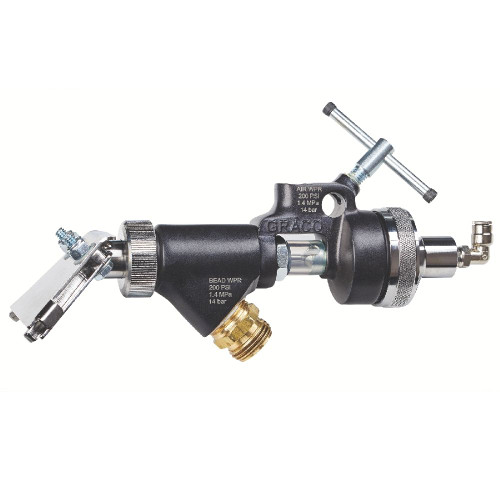

GRACO 238338 - Single Acting Bead Spray Gun for Roadlazer Roadpak, 200 PSI (1.38 MPa

GRACO's high-quality and trouble-free single-acting bead gun designed for striping contractors around the world. Features simple design with air and spring return for shutoff, making it the go-to gun for reliable bead application.

Specifications

• Max Working Pressure: 200 psi (1.38 MPa, 13.8 bar) Maximum Working Pressure
• Actuator Type: Single-acting with air and spring return

Features

• High-quality and trouble-free design
• Simple design - turn on with air and spring return for shutoff
• Single-acting operation
• Reliable shutoff mechanism

Applications

• Road striping applications
• Bead application for reflective road markings
• Professional striping contractor use

Compatible Equipment

• GRACO striping equipment systems
• Professional road marking equipment
• RoadLazer™ RoadPak™ Line Striping System
• RoadLazer

Related Parts

• 246979 - Double-Acting Gun
• 238657 - Hand Bead Applicator Kit
• 196119 - Hand Bead Applicator Kit
• 24G979 - Double Acting Bead Spray Gun
• 238340 - Repair Kit

Kit Contents

• 191201 - SEAT, valve, .234
• 191196 - NUT, retaining
• 191206 - HOUSING, valve
• 166847 - HOUSING, valve
• 25D347 - TOOLESS, handle, gun
• 191197 - CAP, air cylinder
• 164739 - SPRING
• 164740 - GUIDE, spring
• 164741 - PISTON, air
• 156593 - O-RING, nitrile rubber
• 155685 - PACKING, o-ring
• 191195 - TUBE, protection
• 191192 - NEEDLE, gun
• 155463 - O-RING
• 127285 - RING, retaining, external

Part of GRACO's automatic guns family, designed specifically for striping contractors who need reliable bead application equipment. For the application of road marking reflective materials - For professional use only This is the complete single acting gun assembly. Repair Kit 238340 is available separately and includes valve seat and O-ring kits. RoadLazer ships with 3 Valve Seat and O-Ring kits.

Reference Manuals

• 3J0419EN (Page 7) EN-A
• 3J0419EN - A (Page 6)
• 308612 (Page 1) Single Acting and Double Acting Bead Spray Guns for RoadLazer™ RoadPak™ Line Striping System, Operation
• 332226 (Page 5) Bead Gun Kit for LL250SPS and LL200HS Pressurized Bead System
