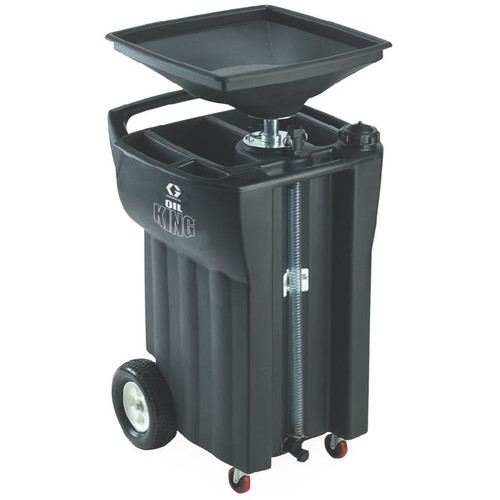

GRACO 238866 - 25 gal Used-Oil Receiver w/ Used-Filter Tray, Tool Holders, Sight Gauge

Oil King is designed with the busy shop in mind. With oversized tires and push-pull handles it allows for smooth maneuvering. The large funnel can collect fluids from both a drain plug and a filter port at the same time.

• Large Offset Collection Pan - This funnel can be raised to a maximum height of 72" (183 cm) and is equipped with a filter screen to prevent debris from entering the tank.
• Filter Drain Tray - Used filters are able to drain separately from the collection pan.
• Convenient Tool Tray - Built-in holding bins for new or used filters, wrenches, and rags all at your fingertips.
• Liquid Sight Gauge - A full-length liquid level sight gauge lets you know when the tank is full.
• Large 25 Gallon (94.6L) Capacity Receiver - Made from a heavy-duty, durable UV stabilized polymer. Dent-, rust-, and corrosion-resistant.
• Oversized Tires - Easily maneuver over hose and rough floors.
• Two Evacuation Port Options - Choose from the gravity drain valve at the bottom or suction-evacuation from the top.

Additional Specifications

• Length: 24 inch (610 mm)
• Material: linear low-density polyethylene (LLDPE), zinc-plated steel, brass, nylon, polypropylene, PVC, Buna-N, polyurethane
• Capacity: 25 gallon (95 liter)
• Container Type: used-fluid container
• Fluid Type: petroleum lubricants
• Width: 24 inch (610 mm)
• Height Min: 45 inch (1143 mm)
• Height Max: 69 inch (1573 mm)
• Dry Weight: 54 pounds (24.5 kg)
• Inlet Port Size: 3 inch (76 mm) buttress
• Operating Temp: 30°F to 105°F (-1°C to 41°C)

Compatible Equipment

• GRACO Used Oil Evacuation System and accessories documented in instruction manual 308719 and 308870
• Series D

Related Parts

• 248632 - Series D - Used Anti-Freeze Receiver
• 243650 - Series A - Funnel Kit
• 248632 - 25 gal Used-Antifreeze Receiver w/ Used-Filter Tray, Tool Holders, Sight Gauge

25 gallon (96 liter) used-fluid container for the collection of petroleum lubricants or antifreeze only This is a used oil receiver with black tank. The manual also shows Model 248632 Series D as the Anti-Freeze Receiver (green tank) variant. All technical specifications appear to apply to both models.

Reference Manuals

• 308667 (Page 1) Oil King and Coolant King
