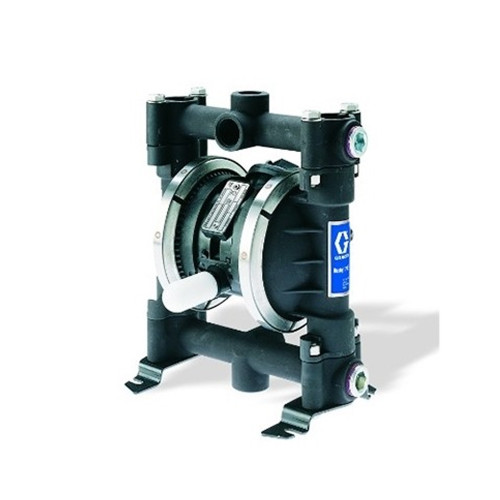

GRACO 243305 - Husky 716 AL Air Operated Double Diaphragm Metal Pump w/ AC Seat, SP Ball, & SP Diaphragm

Specifications

• Thread: 3/4 npt(f), bspt(f) or bspp(f) fluid outlets
• Material: AL (Aluminum)
• Pump Model: 716
• Same As: D53266
• Port Configuration: open downward port
• Inlet Manifold: 190246
• Overall Height: 10.43 in. (264.9 mm)
• Overall Width: 6.62 in. (168.1 mm)
• Overall Depth: 6.04 in. (153.4 mm)
• Mounting Hole Pattern: Four 0.28 in. (7.1 mm) diameter slots, 6.62 in. x 4.29 in. spacing
• Air Inlet: 1/4 npt(f)
• Fluid Inlet Height: 7.37 in. (187.2 mm)
• Bottom Port: open

Compatible Equipment

• Husky 716 pump systems

Related Parts

• D53266 - Husky 716 AL Air Operated Double Diaphragm Metal Pump w/ Open Downward Port
• 190246 - Manifold, 716, NPT, Poweder Coat
• 246485†
• 243306 - Husky 716 AL Air Operated Double Diaphragm Metal Pump w/ AC Seat, Buna Ball, & Buna Diaphragm
• 243307 - Husky 716 AL Air Operated Double Diaphragm Metal Pump w/ AC Seat, PTFE Ball, & PTFE Diaphragm
• 25D749
• 24B674 - Husky 716 SS Air Operated Double Diaphragm Metal Pump
• 24X781
• 26B283

Has open downward port. Use inlet manifold 190246. Per footnote: Pump model numbers 243305, 243306, 243307, and 246485 have one 190246 inlet manifold and one 185624 outlet manifold. This indicates 243305 is a complete pump model in the Husky 716 series with specific manifold configuration (aluminum inlet manifold 190246 and aluminum outlet manifold 185624). Bottom port open on 243305, 243306, 243307 and 246485 only. Pumps with duckbill check valves are shipped with inlet manifold on top and outlet manifold on bottom - can be rotated by rotating four duckbill assemblies vertically 180°.

Reference Manuals

• 308981 (Page 24) Air-Operated Diaphragm Pumps
• 309116 (Page 1) Husky 515/Husky 716 Drum Pump Kits and Packages
