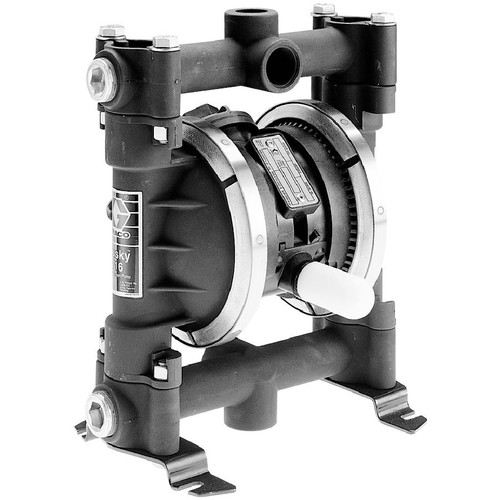

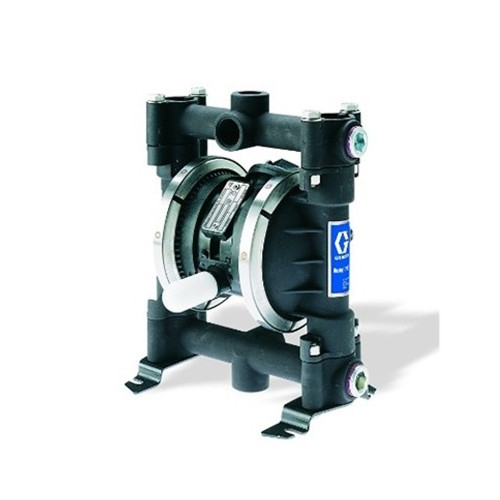

GRACO 243306 - Husky 716 AL Air Operated Double Diaphragm Metal Pump w/ AC Seat, Buna Ball, & Buna Diaphragm

Specifications

• Thread: 3/4 npt(f), bspt(f) or bspp(f) fluid outlets
• Material: Aluminum construction with AC Seat, Buna Ball, & Buna Diaphragm
• Same As: D53277
• Except For: Has open downward port. Use inlet manifold 190246.
• Overall Height: 10.43 in. (264.9 mm)
• Overall Width: 7.80 in. (198.1 mm)
• Overall Length: 6.04 in. (153.4 mm)
• Air Inlet: 1/4 npt(f)
• Fluid Inlet Outlets: 3/4 npt(f) or bspt(f)
• Mounting Hole Pattern: Four 0.28 in. (7.1 mm) diameter slots, 6.62 x 4.29 in. (168.1 x 109.0 mm)
• Bottom Port: open

Compatible Equipment

• Husky 716 Fluid Section
• Husky 716 series pumps

Related Parts

• D53277 - Husky 716 AL Air Operated Double Diaphragm Metal Pump w/ NPT Standard Air Valve, AC Seat, Buna Ball, & Buna Diaphragm
• 190246 - Manifold, 716, NPT, Poweder Coat
• 246485†
• 243305 - Husky 716 AL Air Operated Double Diaphragm Metal Pump w/ AC Seat, SP Ball, & SP Diaphragm
• 243307 - Husky 716 AL Air Operated Double Diaphragm Metal Pump w/ AC Seat, PTFE Ball, & PTFE Diaphragm
• 25D749
• 24B674 - Husky 716 SS Air Operated Double Diaphragm Metal Pump
• 24X781
• 26B283

Part of Additional Husky 515 and Husky 716 Pumps section. Uses inlet manifold 190246 due to open downward port configuration. Pump model numbers 243305, 243306, 243307, and 246485 have one 190246 inlet manifold and one 185624 outlet manifold. This appears to be a complete pump model rather than an individual component part. Bottom port open on 243305, 243306, 243307 and 246485 only. Pumps with duckbill check valves are shipped with the inlet manifold on top and the outlet manifold on the bottom.

Reference Manuals

• 308981 (Page 24) Air-Operated Diaphragm Pumps
• 309116 (Page 1) Husky 515/Husky 716 Drum Pump Kits and Packages
