GRACO 244648 Fire-Ball® 425 Series 75:1 Grease Pump - Horizontal Mount Package
The Fire-Ball 425 features a large air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.
The Fire-Ball 425 is the pump of choice for your most demanding high volume applications.
- Durable Casting - Thick cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
- Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
- Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
Compatible Equipment
- 75:1 Fire-Ball 425 Pumps
- President Air Motors
- Fire-Ball 300 and 425 Grease Pumps
- Models 244646 - Model 244646 - Compatible w/ Fireball 425 System, 1/2 NPT(Fbe), 80 PSI (0.55 MPa
- Models 244647 - Fireball 425 System, Bulk Grease
Related Parts
- 244644 - Fireball 300 System, Bulk Grease
- 244645 - Fire-Ball 300 Series 50:1 Grease Pump Horizontal Mount Package, 3/8 NPT(Fbe)
- 244646 - Model 244646 - Compatible w/ Fireball 425 System, 1/2 NPT(Fbe), 80 PSI (0.55 MPa
- 244647 - Fireball 425 System, Bulk Grease
- 239730 - Fire-Ball 425 Series 75:1 350-400 lb (160-180 kg). Container Bare Grease Pump
- 239731 - Fire-Ball 425 Series 75:1 35 lb. Container Pail Length Grease Pump
- 110225 - 1/2" NPT Vented Air Shut-Off Ball Valve
- 222076 - Stationary Drum Fire-Ball 425, 50:1 Hose & Fitting Kit, 4000 psi
- 244844 - Air Regulator to Control Pump Speed & Pressure, 1/2" NPT, 0-200 PSI Gauge
- 948392 - Flange Mounting male adapter for Fire-Ball 425
Reference Manuals
- 309350 (Page 1) Bulk Grease Transfer Packages
Specifications:
| Air Inlet Size (in) |
0.5 |
| Air Inlet Thread Gender |
Female |
| Air Inlet Thread Type |
NPT |
| Application |
Industrial |
| Compatible Material |
Grease |
| Fluid Outlet Size (in) |
3/8 |
| Fluid Outlet Thread Gender |
Female |
| Fluid Outlet Thread Type |
NPT |
| Includes |
Fire-Ball 425 75:1 Pump, Air Shutoff Valve, Hose and Fitting Kit, Air Regulator, Nipple |
| Maximum Air Working Pressure |
100 |
| Maximum Fluid Working Pressure (psi) |
4000 |
| Maximum Working Pressure (MPa) |
27.6 |
| Maximum Working Pressure (psi) |
4000 |
| Motor Type |
Pneumatic |
| Mount Location |
Horizontal Mount |
| Power Type |
Pneumatic |
| Pump Ratio |
75:1 |
| Pump Weight (lb) |
30 |
| Series |
425 |
| Type |
Piston Pump Package |
| Wetted Material |
CS, Delrin, Buna-N, Polyurethane |

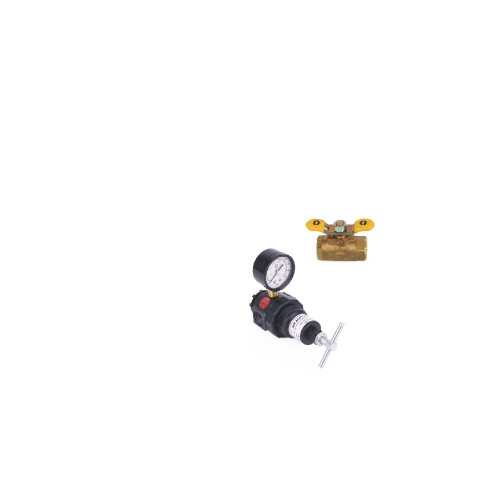

Package Includes:
- GRACO 239731 Fire-Ball 425, 75:1 Air-Powered Grease Pump (35/70 lb)
- GRACO 244844 Regulator Air
- GRACO 222076 Stationary Drum Fire-Ball 425, 50:1 Hose & Fitting Kit, 4000psi
- GRACO 948392 Flange Mounting male adapter for Fire-Ball 425
- GRACO 512874 Fire-Ball Flange Female Mounting Coupler
- GRACO 110225 Valve Ball Vented 0.5
- GRACO 202869 VALVE, NEEDLE
- GRACO 158491 Hose Fitting, 1/2 in x 1/2 in
- 100081 - Pipe Bushing Fitting, 1/2" NPT(M) to 3/8" NPT(F)
- 309350
