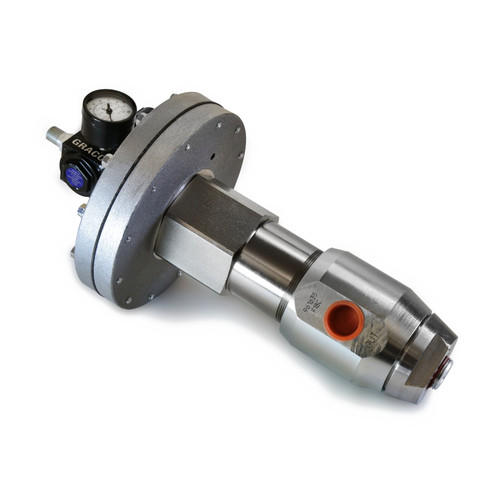

GRACO 244740 Air Operated Mastic Fluid Pressure Regulator
The mastic regulator is ideal for low to high viscosity sealants or adhesives.
These regulators control downstream pressure for mastic or semi-solid material. Install a regulator ahead of each spray gun or extruder gun in a multiple outlet system. The regulator provides precise pressure control to each spray gun from a common header system. It also dampens flow surges when line valves are opened and during pump stroke changeover.
Compatible Equipment
- 961635 - Air Operated Mastic Fluid Pressure Regulator ambient air-operated regulator
- Pressure sensors
- GRACO sealants and adhesives equipment
- spray gun
- extruder gun
- multiple outlet system
Related Parts
- 961635 - Air Operated Mastic Fluid Pressure Regulator
- 238894 - High Pressure Fluid Regulator, 500-4000 psi, 1 gpm, SST, 3/8"(F) x 3/8"(F), 1/4"(F) Port, w/ Gauge
- 244734 - Air Operated High Pressure Fluid Pressure Regulator w/ Ez Flush Gauge Port
- 903958 - Stainless Spring Operated Mastic Fluid Pressure Regulator, 3/4 NPT
Reference Manuals
- 336833 (Page 128) Single Component Catalog - Buyer's Guide and Specifications
- 307517 (Page 1) Spring-Operated and Air-Operated, High Pressure Mastic Fluid Regulators
- 406577 (Page 1) 246728 Spring Loaded Section Conversion Kit
Specifications
| Actuation Type | Air |
| Flow Control Type | Regulation |
| Gauge Port Size (in) | 3/4 |
| Gauge Port Type | NPT |
| Inlet Size (in) | 3/4 |
| Inlet Thread Type | NPT |
| Maximum Regulated Pressure (psi) | 4500 |
| Maximum Viscosity (cP) | 80000 |
| Maximum Working Pressure (MPa) | 34.4 |
| Maximum Working Pressure (psi) | 5000 |
| Minimum Regulated Pressure (psi) | 250 |
| Outlet Size (in) | 3/4 |
| Outlet Thread Type | NPT |
| Type | Fluid Regulator |
| Wetted Material | Zinc-Plated Carbon Steel, Brass, Stainless Steel, Viton, Tungsten Carbide, UHMWPE, Ethylene, Propylene, PTFE |
