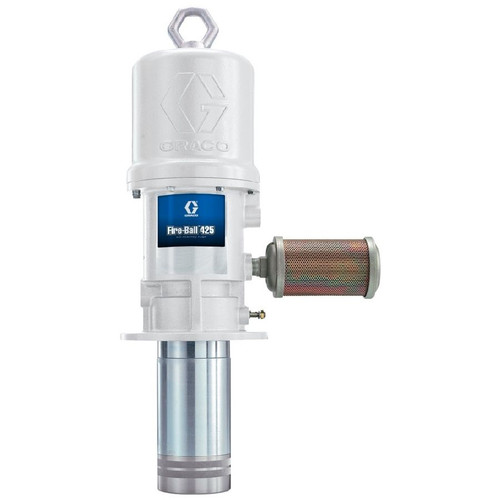

GRACO 244846 - Fire-Ball 425 3:1 Series Universal Size Oil Pump Wall-Mounted Package, 180 PSI
PUMP, 3:1 Fire-Ball 425 (used on model 244846; see manual 308485)
The Fire-Ball 425 features a 4.25 inch (107.9 mm) air motor to supply the power you need for long pipe runs and higher-volume dispensing. An ideal choice for applications where multiple dispenses happen at the same time.
The Fire-Ball 425 is the pump of choice for your most demanding high volume applications.
- Durable Casting - Thick cast aluminum air motor housing offers unmatched durability.
- Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
- Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
- Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximize seal life.
- Corrosion-Resistant - Corrosion-resistant design utilizes liquid salt nitriding, nickel plating, stainless steel, aluminum and chrome on key components for longer life.
Additional Specifications
- Max Working Pressure: 180 PSI (1.2 MPa, 12 bar) Maximum Air Inlet Pressure, 540 PSI (3.7 MPa, 37 bar) Maximum Fluid Working Pressure
- Type: Wall Mount Bulk Oil Transfer Package
| Air Inlet Size (in) |
1/2 |
| Air Inlet Thread Gender |
Female |
| Air Inlet Thread Type |
NPT |
| Application |
Industrial |
| Compatible Material |
Oil |
| Fluid Inlet Size (in) |
1-1/2 |
| Fluid Inlet Thread Gender |
Female |
| Fluid Inlet Thread Type |
NPT |
| Fluid Outlet Size (in) |
3/4 |
| Fluid Outlet Thread Gender |
Female |
| Fluid Outlet Thread Type |
NPT |
| Includes |
3:1 Fireball 425 Pump, Hose/Fitting Kit, Fluid Hose, Air Hose, Filter Regulator, Air Shutoff Valve, Fluid Shutoff Valve, Wall-Mount Bracket |
| Maximum Air Working Pressure (psi) |
180 |
| Maximum Flow Rate (gpm @ 80 cpm) |
13.4 |
| Maximum Fluid Working Pressure (psi) |
540 |
| Maximum Working Pressure (MPa) |
3.7 |
| Maximum Working Pressure (psi) |
540 |
| Motor Type |
Pneumatic |
| Mount Location |
Wall Mount |
| Power Type |
Pneumatic |
| Pump Ratio |
3:1 |
| Series |
425 |
| Type |
Piston Pump Package |
| Wetted Material |
Steel, Polyurethane, Aluminum, Nitrile |
Compatible Equipment
- Bulk oil transfer applications
- Non-corrosive and non-abrasive oils and lubricants
Related Parts
- 244628 (6:1 Fire-Ball 425)
- 244847 (10:1 Fire-Ball 425)
- 237526 - Fire-Ball 425 Series 3:1 Universal Size Oil Pump
- 238108 - Fire-Ball 425 Series 6:1 Universal Size Oil Pump
- 205626 - Fire-Ball 425 Series 10:1 Universal Size Oil Pump
For dispensing non-corrosive and non-abrasive oils and lubricants only. For professional use only. Not approved for use in European explosive atmosphere locations. Related manual: 308485 for 3:1 Fire-Ball 425 Pump. This appears to be a pump model that uses part 237526 as its main pump component. Manual reference is 308485. Related pumps in the Fire-Ball 425 series include 6:1 ratio (model 244628) and 10:1 ratio (model 244847).
Reference Manuals
- 309351 (Page 1) Wall Mount Bulk Oil Transfer Packages
