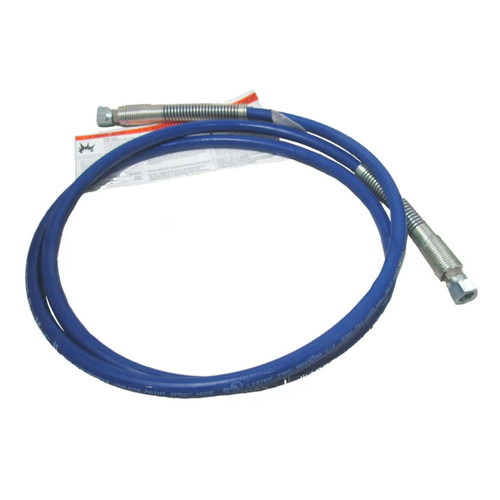

GRACO 245798 - Hose Repair Kit, 1/4" ID, 230 Bar

Professional striping hose with E-nickel fittings designed for LineLazer IV line striping equipment, providing reliable paint delivery with 1/4 inch diameter and 1.8 meter length for optimal reach and maneuverability

Specifications

• Inside Diameter: 1/4 inch
• Length: 1.8 m
• Max Working Pressure: 230 bar
• Material: E-nickel fittings

Features

• E-nickel fittings for durability and chemical resistance
• 1/4 inch diameter for optimal flow
• 1.8 meter length for good reach
• Designed specifically for LineLazer IV systems
• E-nickel fittings for corrosion resistance
• High pressure rating of 3300 psi

Applications

• Line striping operations
• Pavement marking
• Athletic field marking
• Parking lot striping
• Airless line striping
• Professional pavement marking

Compatible Equipment

• LineLazer IV 3900
• LineLazer IV 5900
• LineLazer IV 200HS
• LineLazer striping equipment
• LineLazer V 250sps
• LineLazer V 250pc

Related Parts

• 245225 - Linelazer Hose 3/8" x 50', 3/8" OD, 3/8" ID, 230 Bar
• 248157 - FlexPlus Striping Gun with LL5319 Tip
• 245225 - LineLazer Hose with E-nickel fittings, 9.5 mm x 15 m, 3300 psi
• 249080 - Coupled Hose, 6.3 mm x 15 m, 3300 psi (LineLazer 3400 only)
• 242484 - LineLazer Hose with E-nickel fittings, 9.5 mm x 6 m, 3300 psi (LineLazer IV 250es only)
• 191239 - LineLazer Hose with E-nickel fittings, 9.5 mm x 3.6 m, 3300 psi (LineLazer IV 250bc only)
• 191239 - Hose 3/8" x 3.6 m

Part of the LineLazer IV Auto-Layout system accessories. Only use hoses with line striping to avoid chemical reactions with waterbased paints. Part of the LineLazer airless line striping systems accessories family Part of the hose assembly system for LineLazer V series striping equipment

Reference Manuals

• 320595 (Page 4) The LineLazer™ IV Auto-Layout Principle
• 343213 (Page 10) LineLazer
• 3J0419EN (Page 5) EN-A
• 3J0419EN - A (Page 5)
• ENEU_LL250SPS_DC-C (Page 2)
